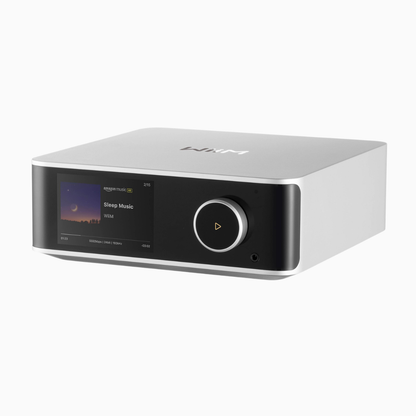

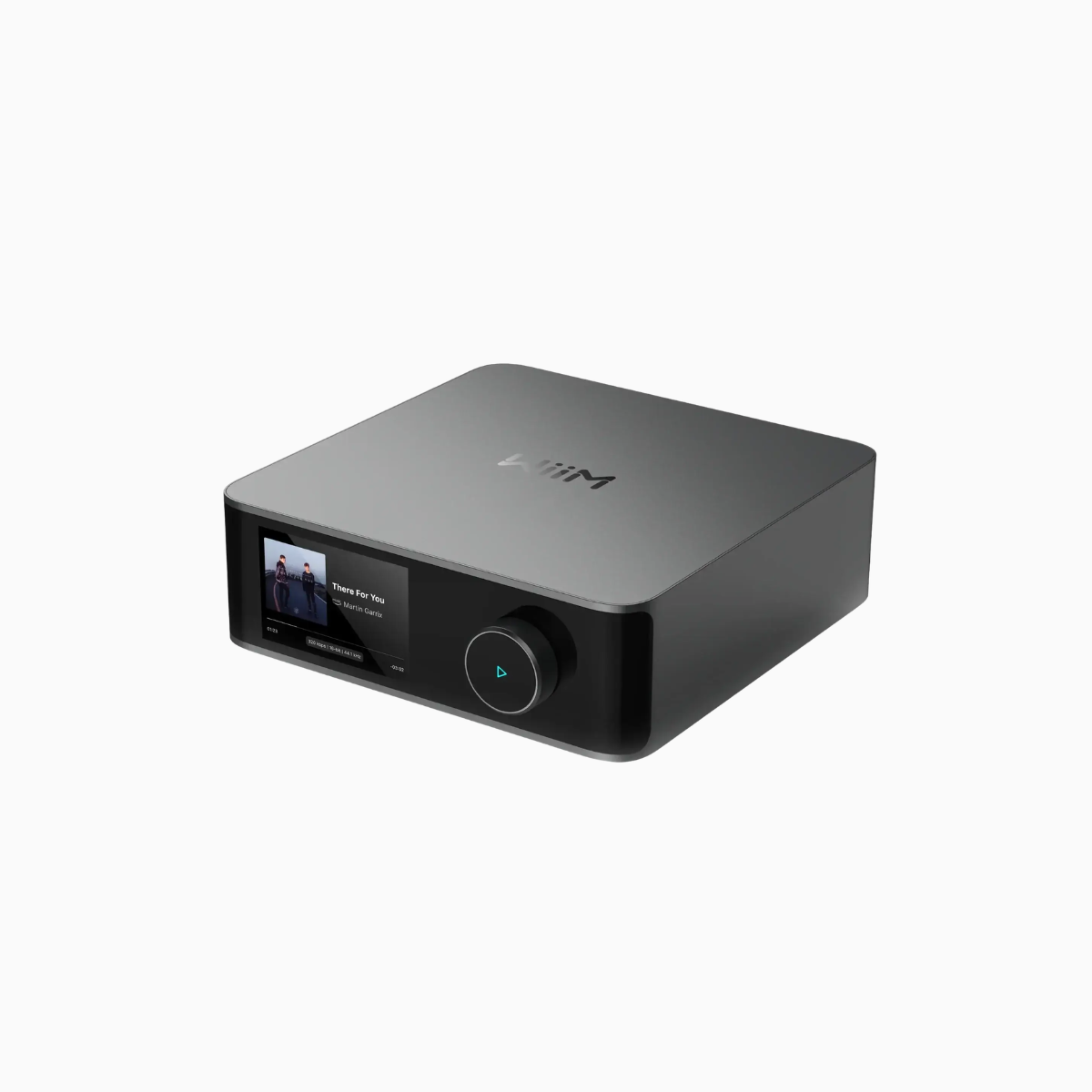

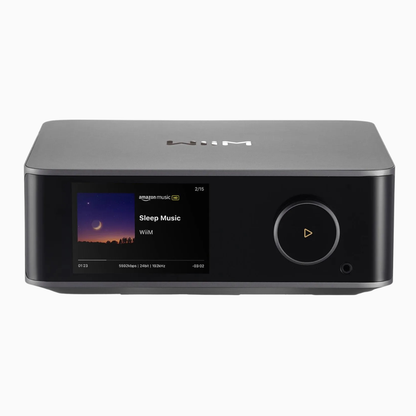

WiiM Ultra Hi-Res Music Streamer

Description

Upgrade your Hi-Fi or home theatre system with the WiiM Ultra Hi-Res Music Streamer — the flagship network audio streamer from WiiM designed for uncompromising audiophile performance. Acting as a digital hub for your entire audio ecosystem, the WiiM Ultra delivers exceptional fidelity, smart versatility, and seamless connectivity for both modern and legacy setups. Acting as a digital hub for your entire audio ecosystem, the WiiM Ultra delivers uncompromising fidelity, smart versatility, and seamless connectivity for every modern and legacy setup.

Powered by the ESS Sabre ES9038Q2M DAC and TI Burr-Brown PCM1861 ADC, it offers ultra-low distortion (THD+N −116 dB) and an exceptional 121 dB signal-to-noise ratio. This ensures studio-grade sound clarity across all inputs and outputs — from vinyl to digital streaming. The built-in RoomFit™ Room Correction, 10-band EQ, and subwoofer calibration further optimize sound for your room’s acoustics.

With extensive I/O options — including HDMI ARC, Phono In, Line In/Out, Optical, Coaxial, USB In/Out, Sub Out, and 12 V trigger — the WiiM Ultra integrates effortlessly into any setup. Stream via Spotify Connect, TIDAL Connect, Alexa Cast, Google Cast, DLNA, Roon Ready, or Bluetooth 5.3, all controllable from the WiiM Home app or via voice assistants (Alexa/Google).

Featuring a 3.5-inch color touchscreen, Wi-Fi 6, Ethernet, and two-way Bluetooth, the WiiM Ultra combines audiophile engineering with intuitive smart control — redefining the standard for high-resolution streaming.

Key Features:

• Flagship Hi-Res streamer with ESS ES9038Q2M DAC (121 dB SNR / –116 dB THD+N)

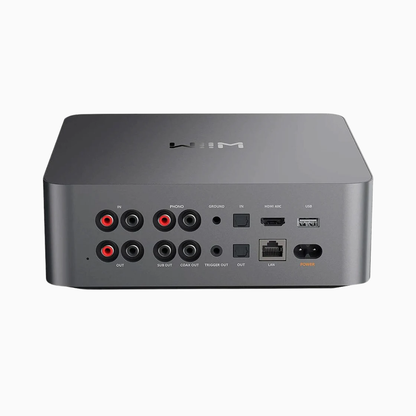

• HDMI ARC, Optical In/Out, Line In/Out, Phono In, Coax Out, USB In/Out, Sub Out, Headphone Out

• Wi-Fi 6, Ethernet, and Bluetooth 5.3 (2-way) connectivity

• Supports Spotify Connect, TIDAL Connect, Alexa Cast, Google Cast, DLNA, Roon Ready

• RoomFit™ Room Correction and 10-band Graphic/Parametric EQ

• 3.5-inch color touchscreen with physical volume knob and voice-remote support

• Phono (MM/MC) input with high-precision RIAA stage

• Multi-room sync with WiiM, Alexa, or Google Cast devices

• USB media server support (FAT32, NTFS, EXT4) for local playback

• 12 V trigger out for amplifier control

• Controlled via WiiM Home app (iOS/Android) or voice assistants


Technical Specifications:

• DAC: ESS ES9038Q2M | ADC: TI PCM1861

• Audio Resolution: Up to 192 kHz / 24-bit

• Wireless: Wi-Fi 6 (2.4 & 5 GHz), Bluetooth 5.3

• Processor: Quad-Core A53 | 512 MB DRAM | 512 MB Flash

• Outputs: Line Out (2.1 V RMS, 121 dB SNR), Optical / Coax (192 kHz / 24-bit), USB Audio (192 kHz / 24-bit), Sub Out (2 V RMS), Headphone Out (32–300 Ω load)

• Inputs: HDMI ARC, Optical In, Line In, Phono In (MM/MC)

• Control: 3.5″ Touchscreen, WiiM Voice Remote, WiiM Home App

• Power: 100–240 V AC, 50/60 Hz, 0.5 A Max

• Dimensions: 211 × 200 × 72 mm | Weight: 1.42 kg
