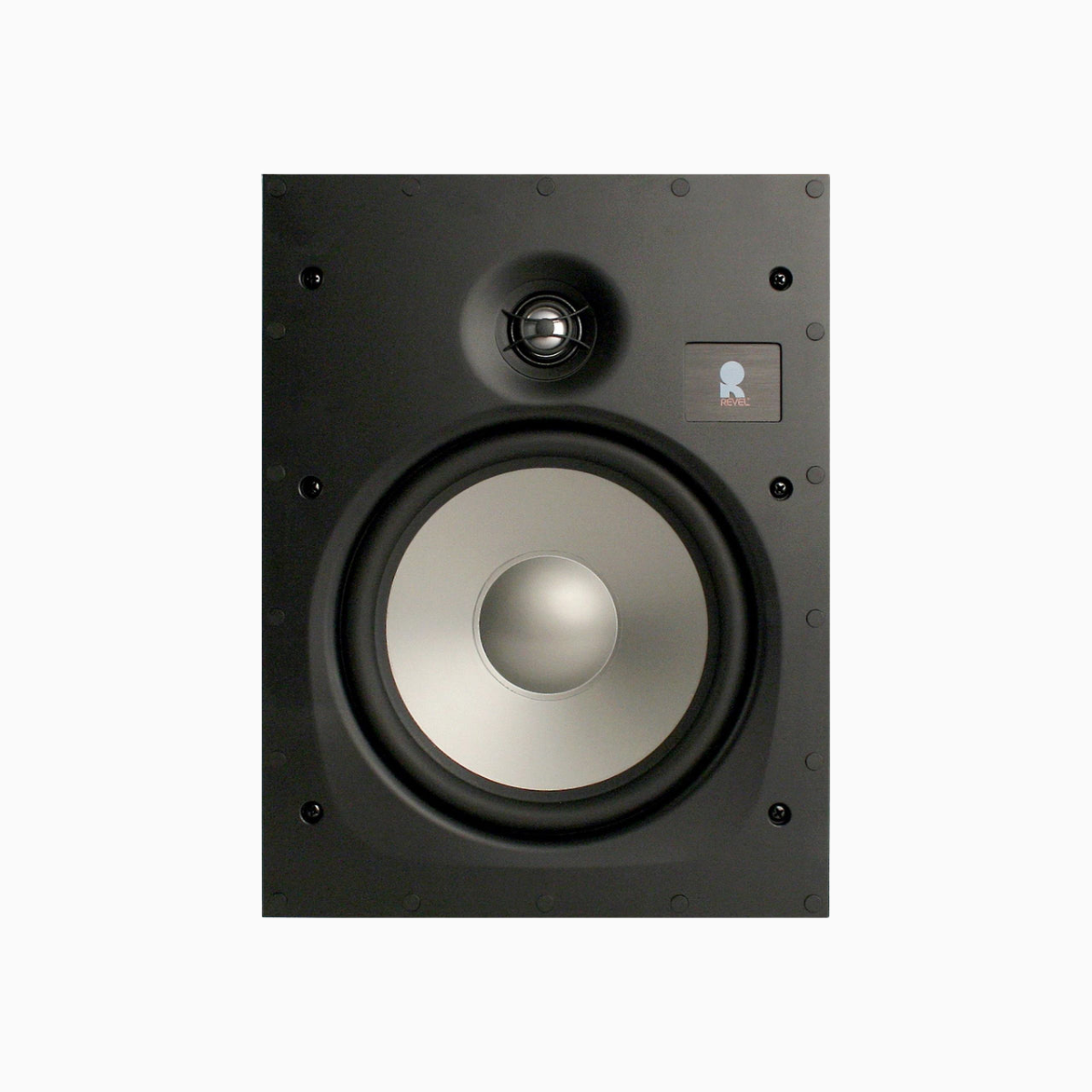

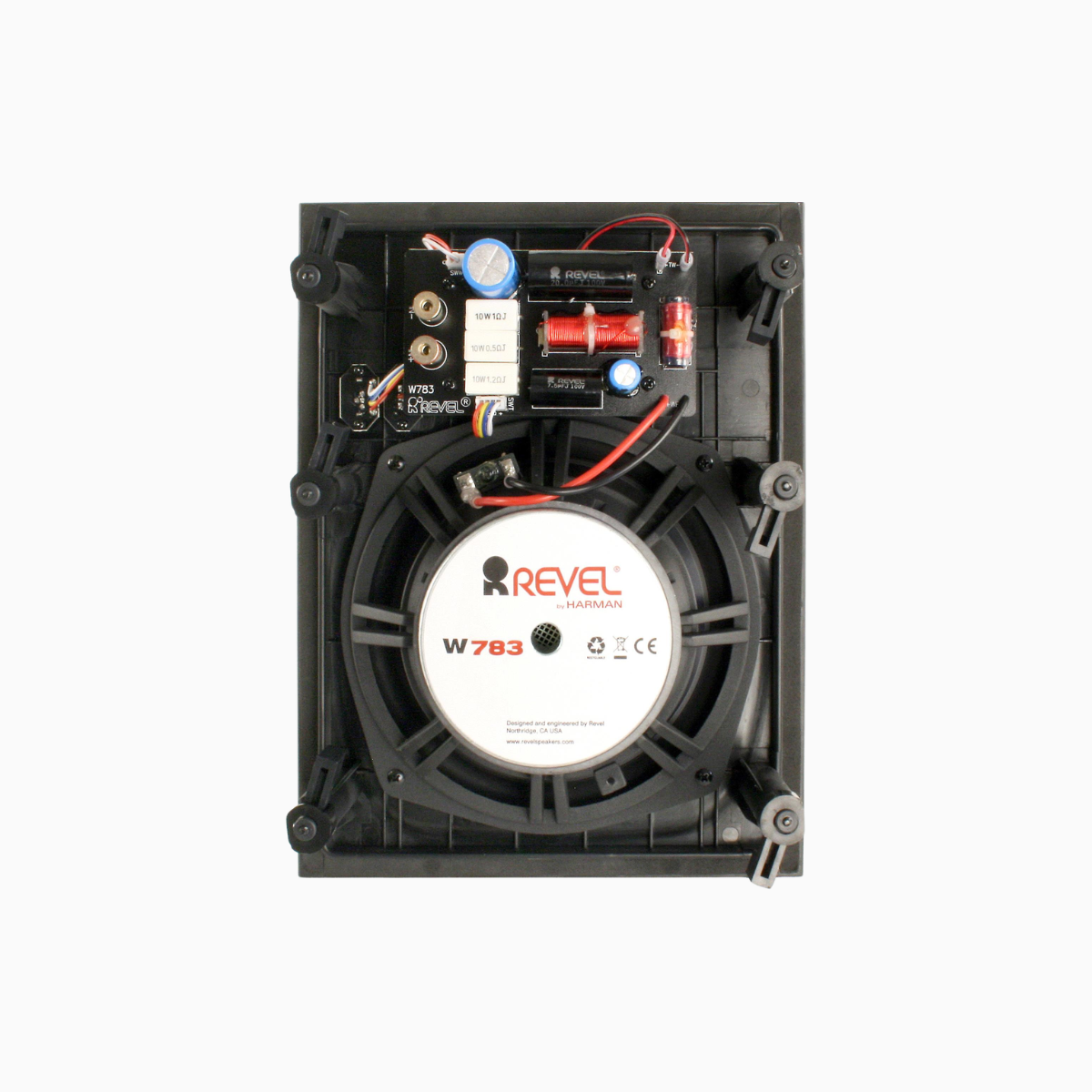

Revel W783 In-Wall Loudspeaker
Description
The Revel W783 is a premium high-performance in-wall loudspeaker designed to deliver exceptional sound quality while maintaining a clean and discreet architectural appearance. Built using Revel’s acclaimed acoustic engineering and Harman research technologies, the W783 is ideal for luxury home theaters, multi-room audio systems, and high-fidelity distributed music installations where superior performance and elegant integration are equally important.
Featuring an advanced 2-way design, the W783 combines an 8-inch Micro-Ceramic Composite (MCC) cone woofer with a cast-aluminum frame and a 1-inch angle-adjustable aluminum dome tweeter equipped with Revel’s integrated waveguide technology. This combination delivers deep, controlled bass, highly detailed midrange reproduction, and smooth, accurate high frequencies with excellent on-axis and off-axis performance. Boundary compensation controls and a three-position tweeter level adjustment allow precise acoustic tuning based on room placement and listening preferences. The zero-bezel magnetic grille provides a seamless finish that blends effortlessly into modern interiors, making the W783 an outstanding choice for premium architectural audio applications.
Key Features
- Premium 2-Way In-Wall Loudspeaker
- 8-Inch Micro-Ceramic Composite (MCC) High-Output Woofer
- 1-Inch Angle-Adjustable Aluminum Dome Tweeter
- Integrated Acoustic Waveguide for Wide Dispersion
- Cast-Aluminum Woofer Frame for Enhanced Rigidity
- High-Order Crossover Network for Accurate Sound Reproduction
- Boundary Compensation Control for Flexible Placement
- 3-Position High-Frequency Level Adjustment
- Long-Throw Woofer Design with Rubber Surround
- Zero-Bezel Magnetic Paintable Grille
- Low Distortion and High Dynamic Performance
- Ideal for Home Theater, Stereo Music, and Multi-Room Audio Systems
- Compatible with Luxury Architectural Audio Installations
Technical Specifications
- Speaker Type: 2-Way In-Wall Loudspeaker
- Woofer: 8" (200mm) Micro-Ceramic Composite (MCC) Cone Woofer
- Tweeter: 1" (25mm) Angle-Adjustable Aluminum Dome Tweeter with Waveguide
- Frequency Controls: 3-Position High-Frequency Level Adjustment
- Boundary Compensation: Yes
- Sensitivity: 89dB
- Nominal Impedance: 8 Ohms
- Recommended Amplifier Power: 10 – 150 Watts RMS
- Mounting Depth: 3.7" (9.4 cm)
- Cutout Dimensions (H × W): 11.9" × 8.9" (30.3 × 22.7 cm)
- Grille Dimensions (H × W): 12.9" × 9.9" (32.8 × 25.2 cm)
- Installation Mechanism: C-2 Mounting System
- Compatible Wall Thickness: 0.5" – 2.0" (1.3 cm – 5.0 cm)
- Weight: 3.2 kg Each
- Grille Type: Zero-Bezel Magnetic Paintable Grille
