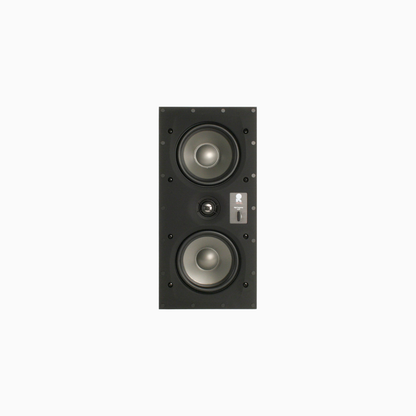

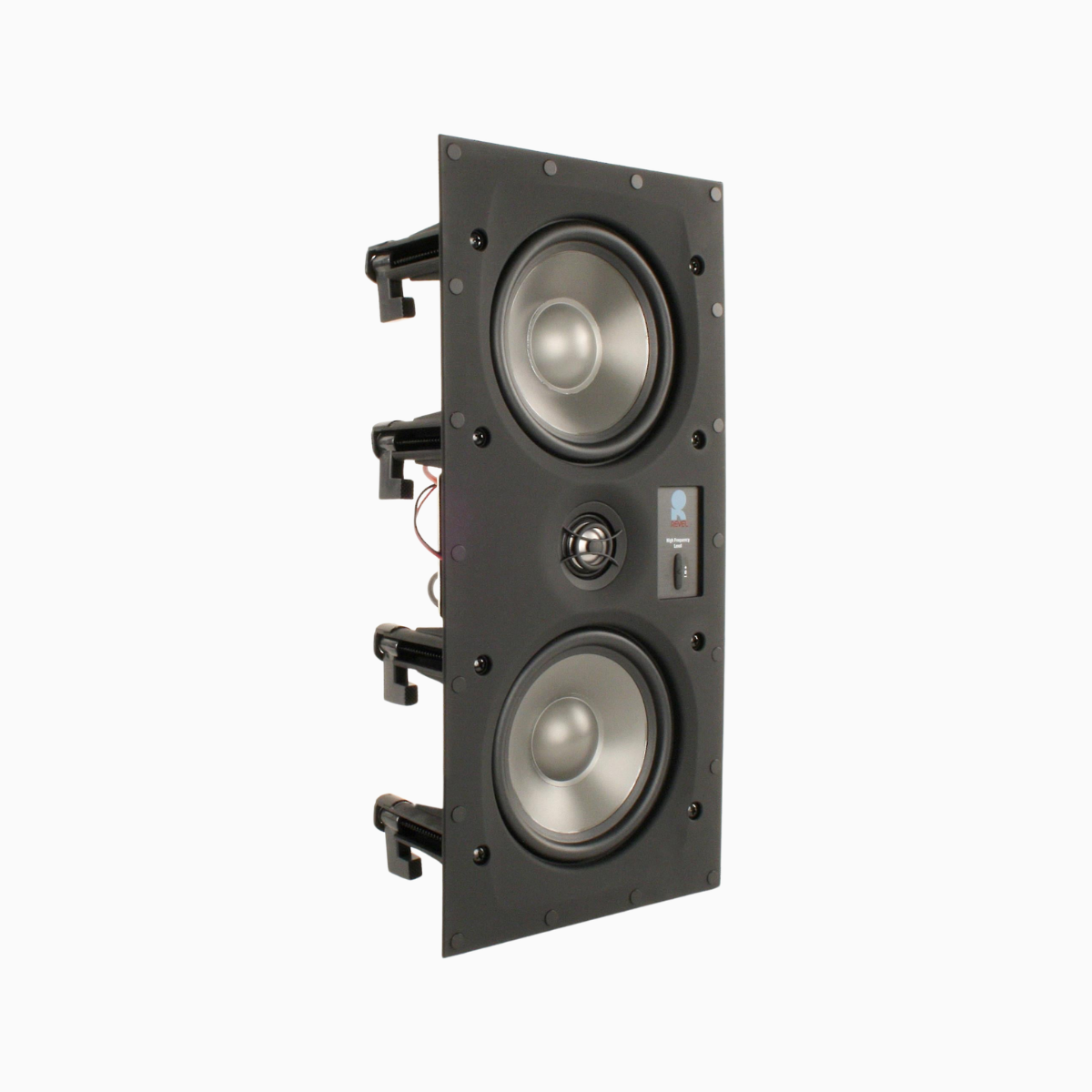

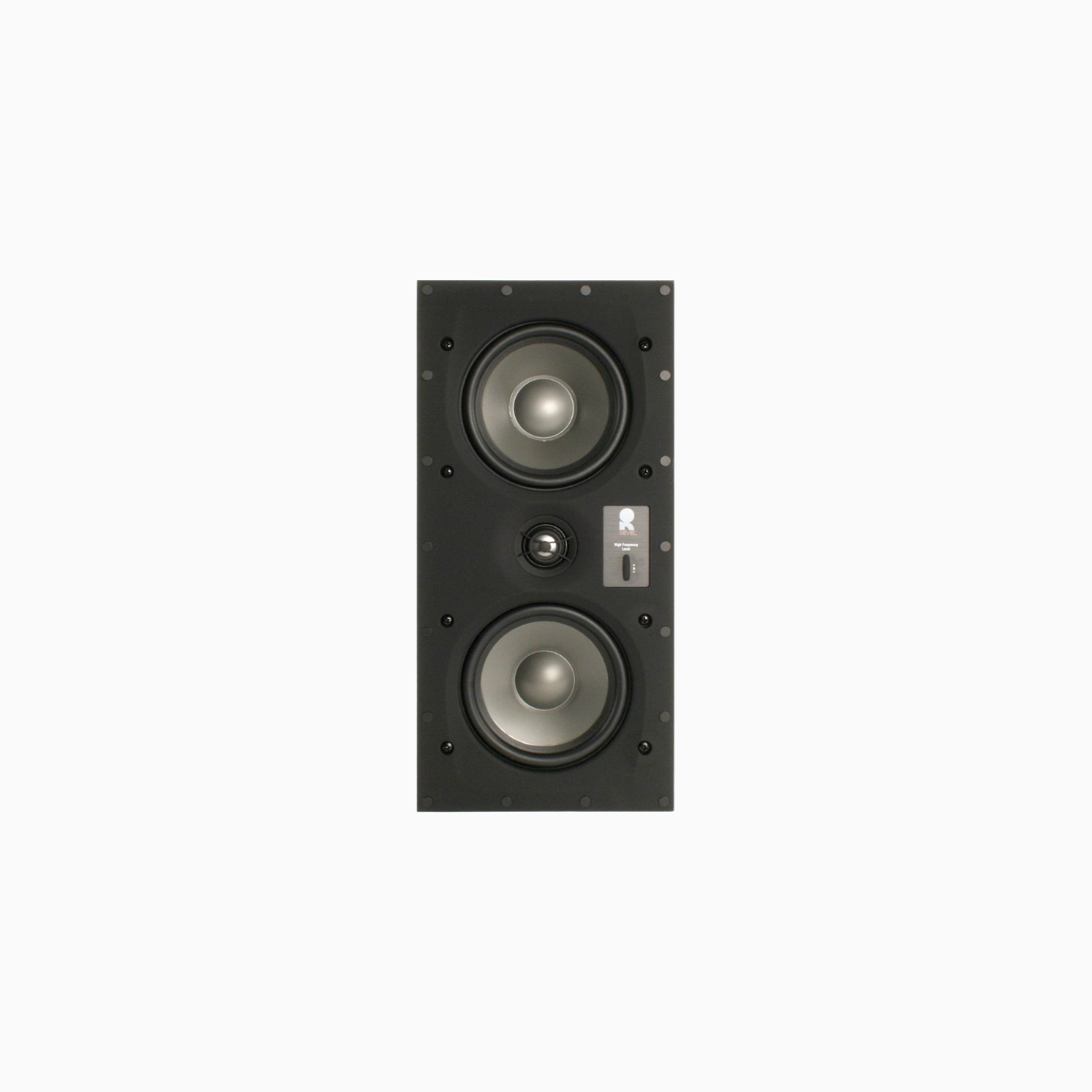

Revel W553L In-Wall Loudspeaker

Description

The Revel W553L is a premium architectural in-wall loudspeaker designed to deliver exceptional sound quality while blending seamlessly into modern interiors. Engineered using Revel’s advanced acoustic research and Harman engineering technologies, the W553L is ideal for high-performance home theater systems, distributed audio installations, and luxury multi-room music environments where discreet aesthetics and outstanding audio performance are equally important.

Featuring a sophisticated 3-way design, the W553L incorporates a 1-inch aluminum dome tweeter with integrated waveguide technology, dual 3-inch Micro-Ceramic Composite (MCC) midrange drivers, and a powerful 5.25-inch MCC woofer. This advanced driver configuration provides detailed high-frequency reproduction, natural vocal clarity, and controlled bass performance with excellent imaging and wide listening coverage. The angle-optimized driver array enhances sound dispersion and dialogue intelligibility, making the W553L particularly well-suited for left, center, right (LCR) home theater applications. Boundary compensation controls and high-frequency level adjustments allow precise acoustic tuning based on room placement and listening preferences. With its zero-bezel magnetic grille design, the W553L integrates elegantly into walls while delivering the refined performance expected from a premium Revel architectural speaker.

Key Features

• Premium 3-Way In-Wall Loudspeaker
• 1-Inch Aluminum Dome Tweeter with Integrated Acoustic Waveguide
• Dual 3-Inch Micro-Ceramic Composite (MCC) Midrange Drivers
• 5.25-Inch Micro-Ceramic Composite (MCC) Woofer
• Optimized LCR Configuration for Home Theater Applications
• Wide Dispersion Design for Consistent Listening Coverage
• Boundary Compensation Control for Flexible Installation
• High-Frequency Level Adjustment Switch

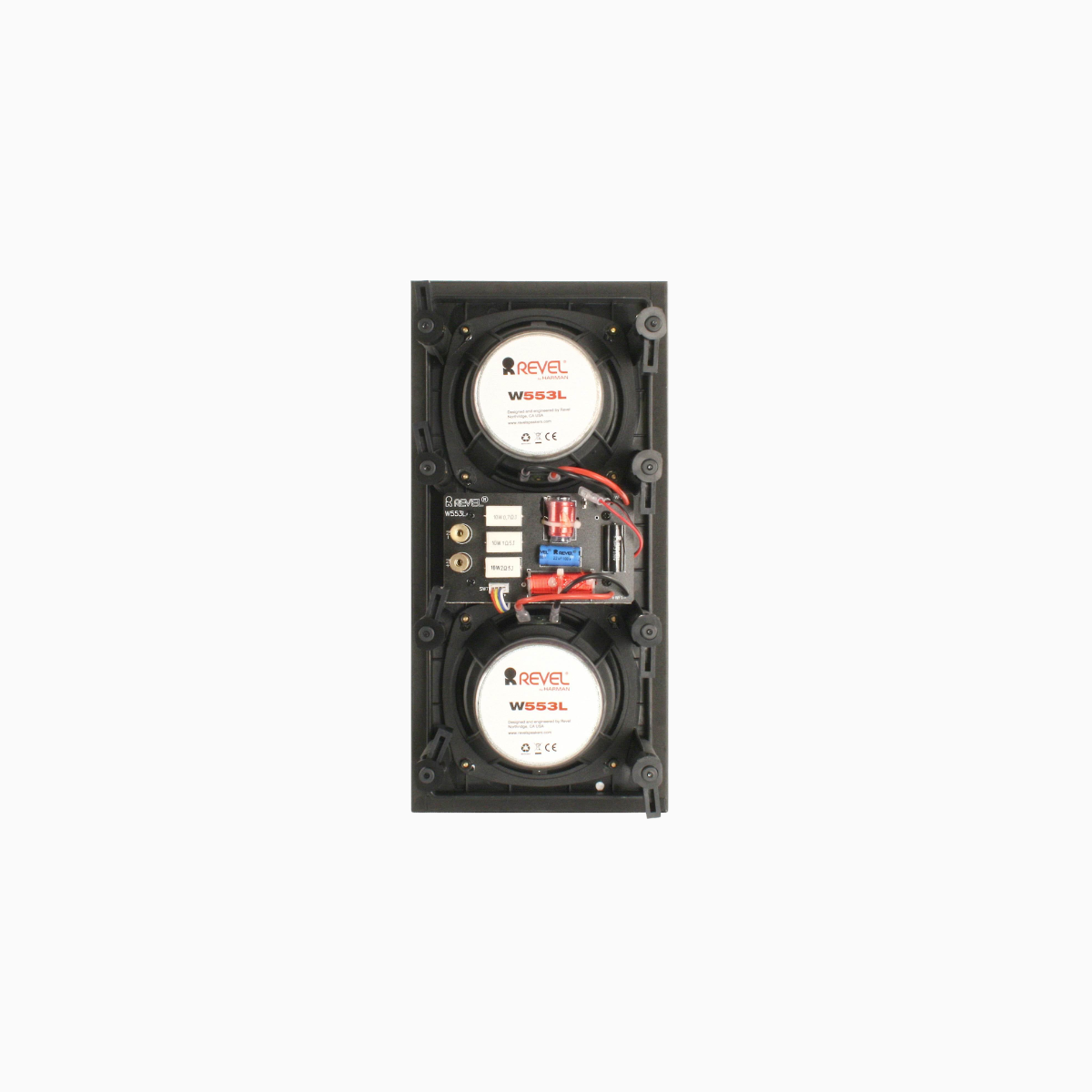

• High-Order Crossover Network with Premium Components
• Low Distortion Driver Design for Accurate Sound Reproduction

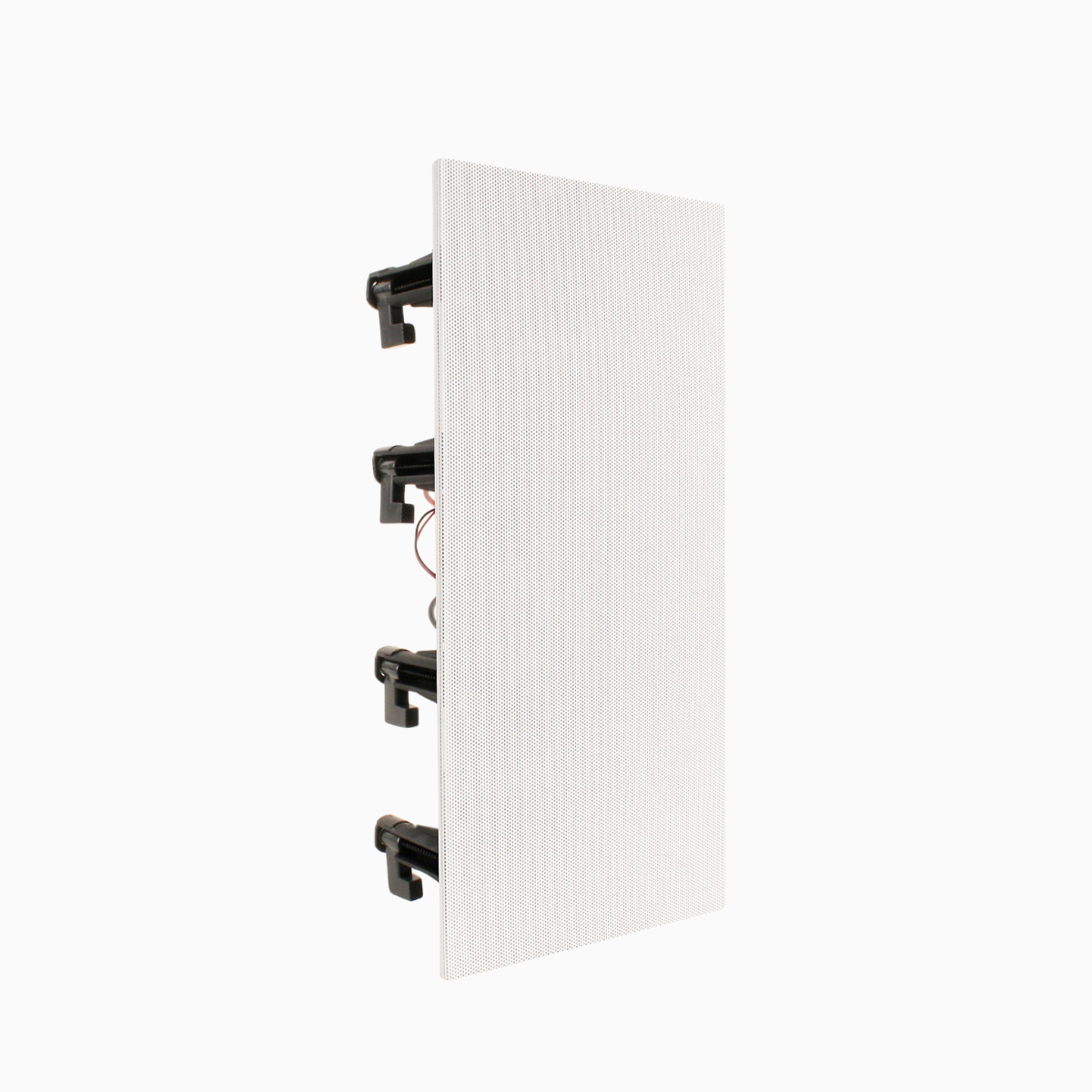

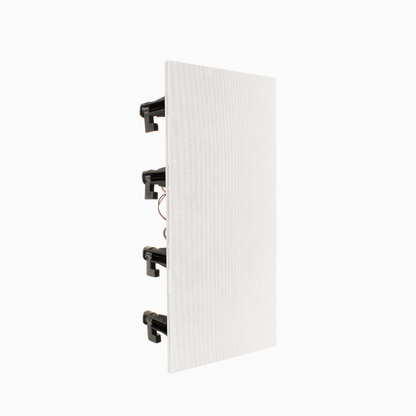

• Zero-Bezel Magnetic Paintable Grille

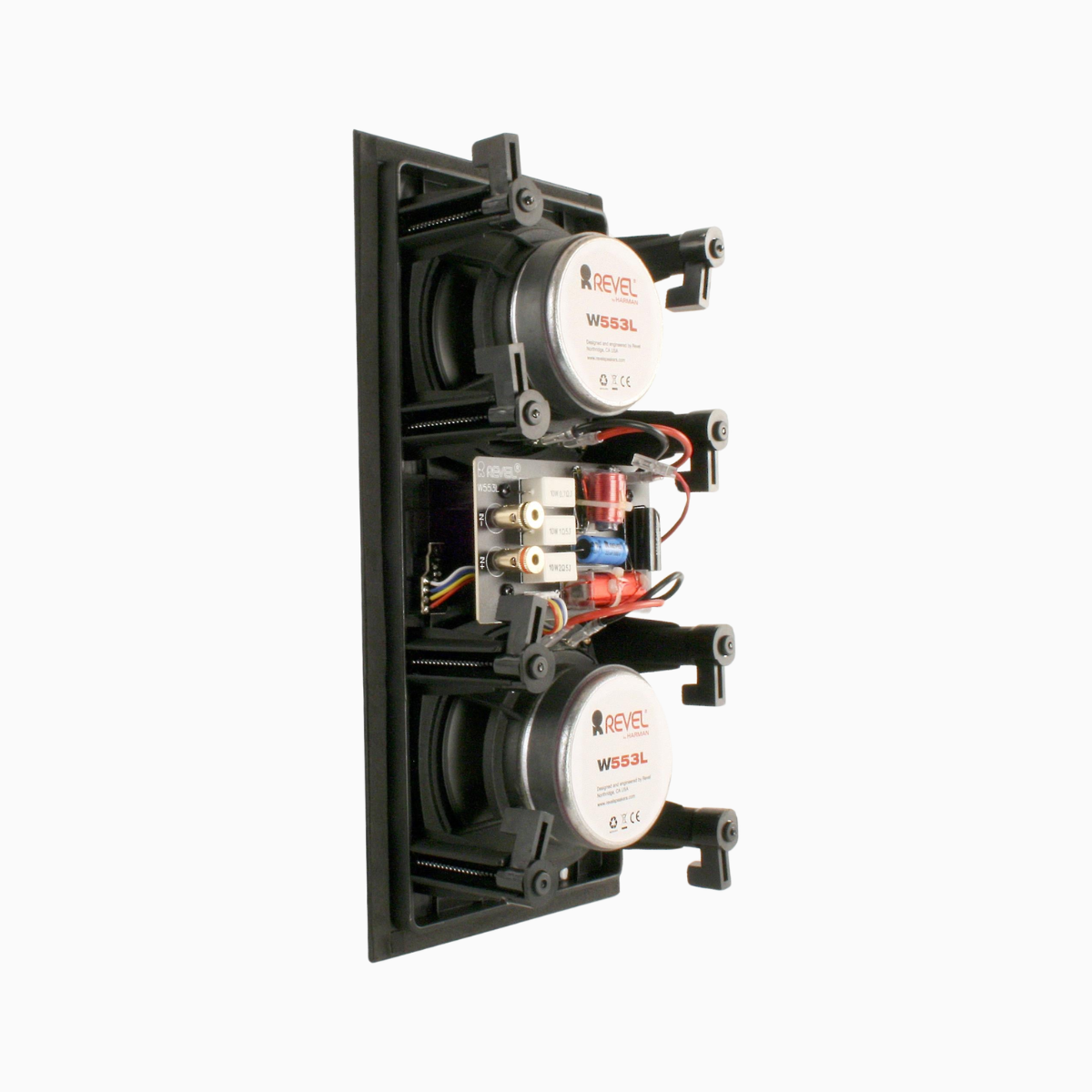

• Secure C-2 Mounting System for Easy Installation
• Ideal for Home Theater, Media Rooms, and Distributed Audio Systems

Technical Specifications

• Speaker Type: 3-Way In-Wall Loudspeaker
• Tweeter: 1" (25mm) Aluminum Dome Tweeter with Waveguide
• Midrange Drivers: Dual 3" (76mm) Micro-Ceramic Composite (MCC) Drivers
• Woofer: 5.25" (133mm) Micro-Ceramic Composite (MCC) Cone Driver
• Frequency Response: 52Hz – 20kHz
• Sensitivity: 87dB (2.83V @ 1m)
• Nominal Impedance: 8 Ohms
• Recommended Amplifier Power: 10 – 150 Watts RMS
• Boundary Compensation: Yes
• High-Frequency Adjustment: 3-Position Level Control
• Mounting Depth: 3.7" (9.4 cm)
• Cutout Dimensions (H × W): 18.3" × 7.5" (46.5 × 19.1 cm)
• Grille Dimensions (H × W): 19.3" × 8.5" (49 × 21.6 cm)
• Installation System: C-2 Mounting Mechanism
• Compatible Wall Thickness: 0.5" – 2.0" (1.3 cm – 5.0 cm)
• Grille Type: Zero-Bezel Magnetic Paintable Grille
