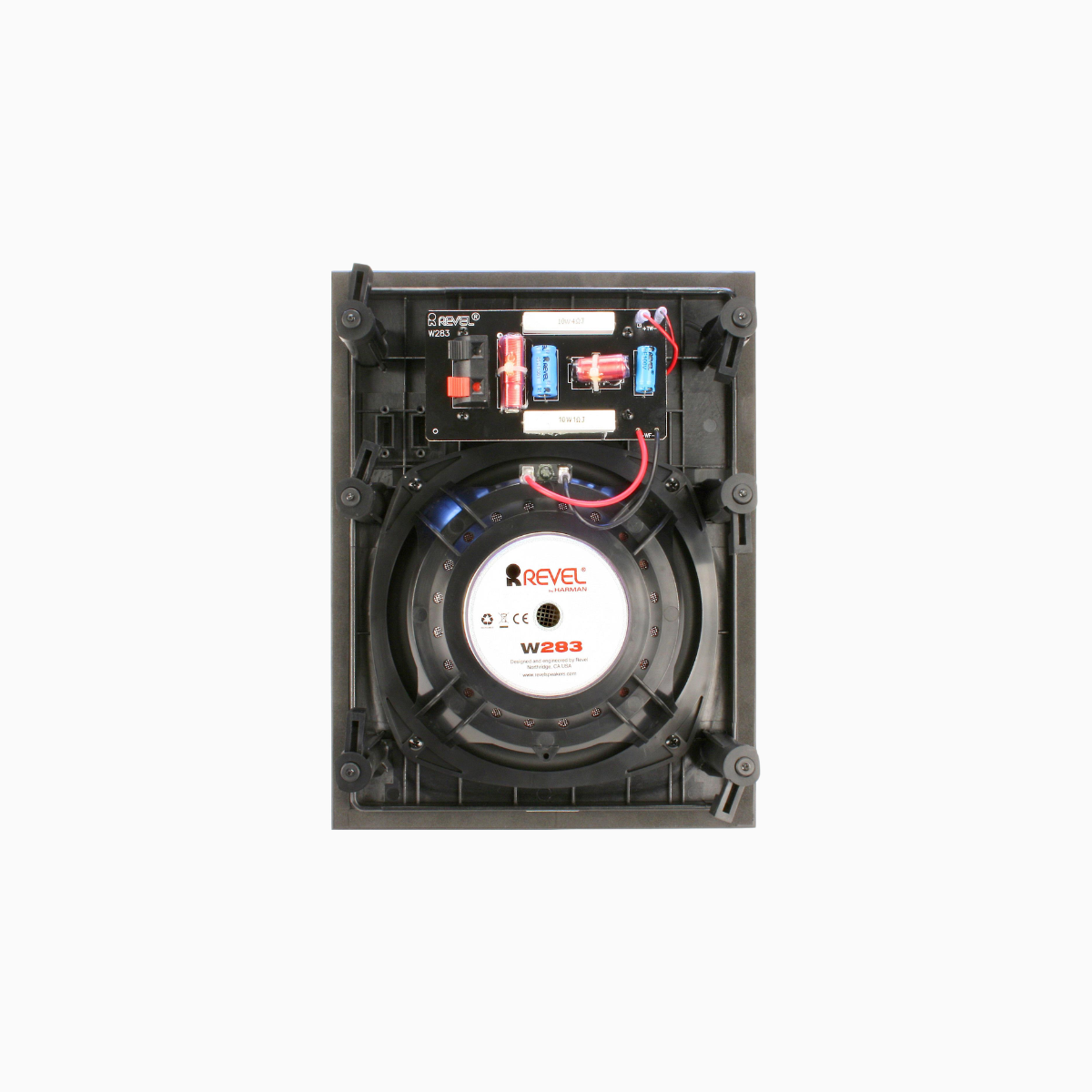

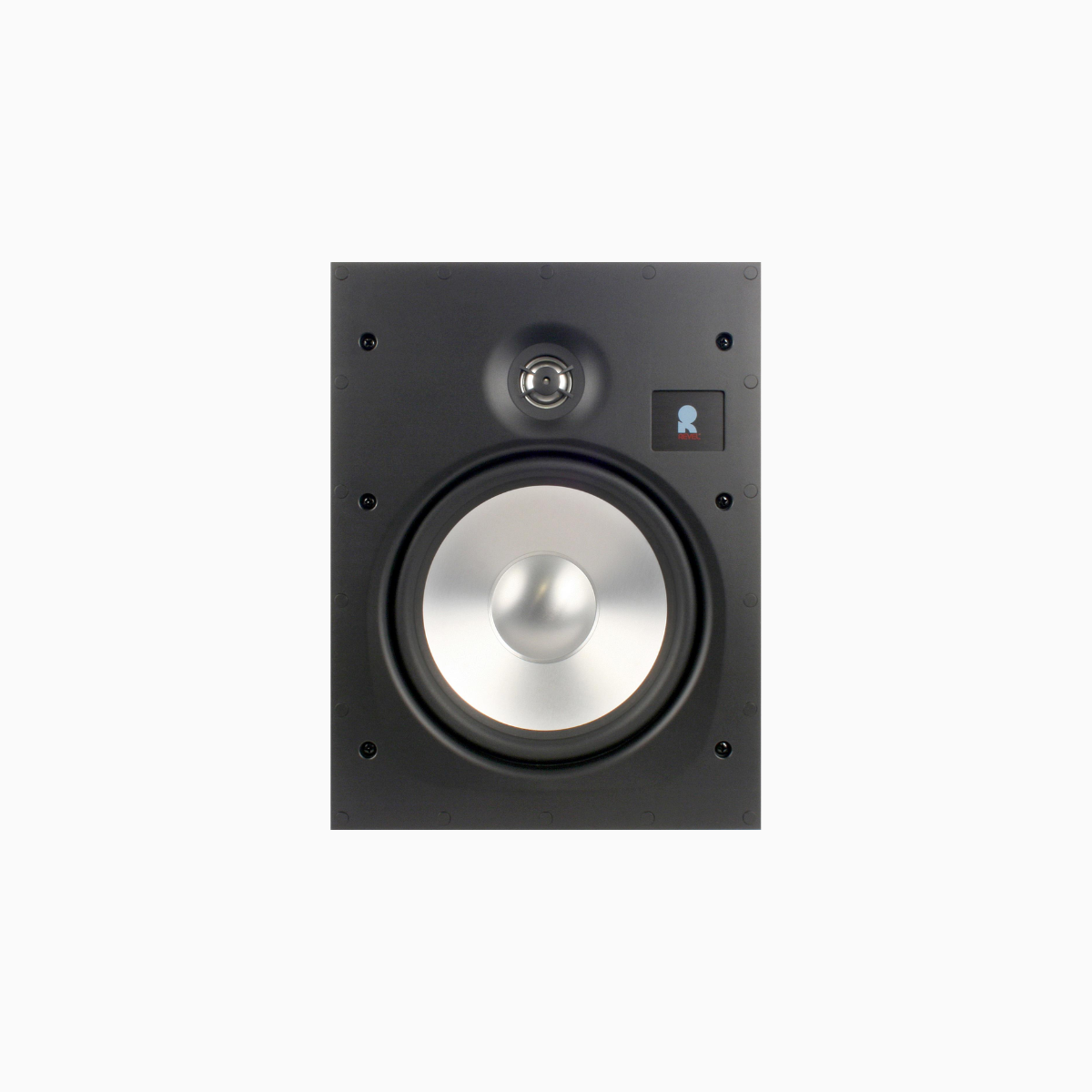

Revel W283 In-Wall Loudspeaker
Description
The Revel W283 is a premium architectural in-wall loudspeaker designed to deliver powerful, detailed sound performance while maintaining a clean and discreet appearance within modern interiors. Engineered using Revel’s advanced acoustic research and Harman technologies, the W283 combines high-output performance, wide dispersion, and exceptional tonal accuracy, making it ideal for luxury home theaters, distributed audio systems, and multi-room music installations.
Featuring a sophisticated 2-way design, the W283 incorporates an 8-inch Micro-Ceramic Composite (MCC) cone woofer and a 1-inch aluminum dome tweeter with an integrated acoustic waveguide. This advanced driver combination delivers deep, controlled bass, natural midrange reproduction, and detailed high frequencies with excellent clarity across a broad listening area. The angle-adjustable tweeter allows precise sound direction toward the listening position, while boundary compensation and high-frequency level controls help optimize performance based on room placement. Designed with a zero-bezel magnetic grille, the W283 blends seamlessly into walls, offering premium audio performance without compromising interior aesthetics.
Key Features
- Premium 2-Way In-Wall Loudspeaker
- 8-Inch Micro-Ceramic Composite (MCC) Cone Woofer
- 1-Inch Angle-Adjustable Aluminum Dome Tweeter
- Integrated Acoustic Waveguide for Wide Dispersion
- Boundary Compensation Control for Flexible Installation
- High-Frequency Level Adjustment Switch
- High-Output Long-Throw Woofer Design
- High-Order Crossover Network with Premium Components
- Smooth and Accurate Sound Reproduction
- Low Distortion Driver Architecture
- Zero-Bezel Magnetic Paintable Grille
- Secure and Easy Installation System
- Ideal for Home Theater, Stereo Music, and Multi-Room Audio Applications
- Designed Using Harman Acoustic Research Technologies
Technical Specifications
- Speaker Type: 2-Way In-Wall Loudspeaker
- Woofer: 8" (203mm) Micro-Ceramic Composite (MCC) Cone Driver
- Tweeter: 1" (25mm) Angle-Adjustable Aluminum Dome Tweeter with Waveguide
- Frequency Response: 40Hz – 20kHz
- Sensitivity: 89dB (2.83V @ 1m)
- Nominal Impedance: 8 Ohms
- Recommended Amplifier Power: 10 – 150 Watts RMS
- Boundary Compensation: Yes
- High-Frequency Adjustment: 3-Position Level Control
- Mounting Depth: 3.7" (9.4 cm)
- Cutout Dimensions (H × W): 14.4" × 10.3" (36.6 × 26.2 cm)
- Grille Dimensions (H × W): 15.4" × 11.3" (39.1 × 28.7 cm)
- Installation System: C-2 Mounting Mechanism
- Compatible Wall Thickness: 0.5" – 2.0" (1.3 cm – 5.0 cm)
- Grille Type: Zero-Bezel Magnetic Paintable Grille
