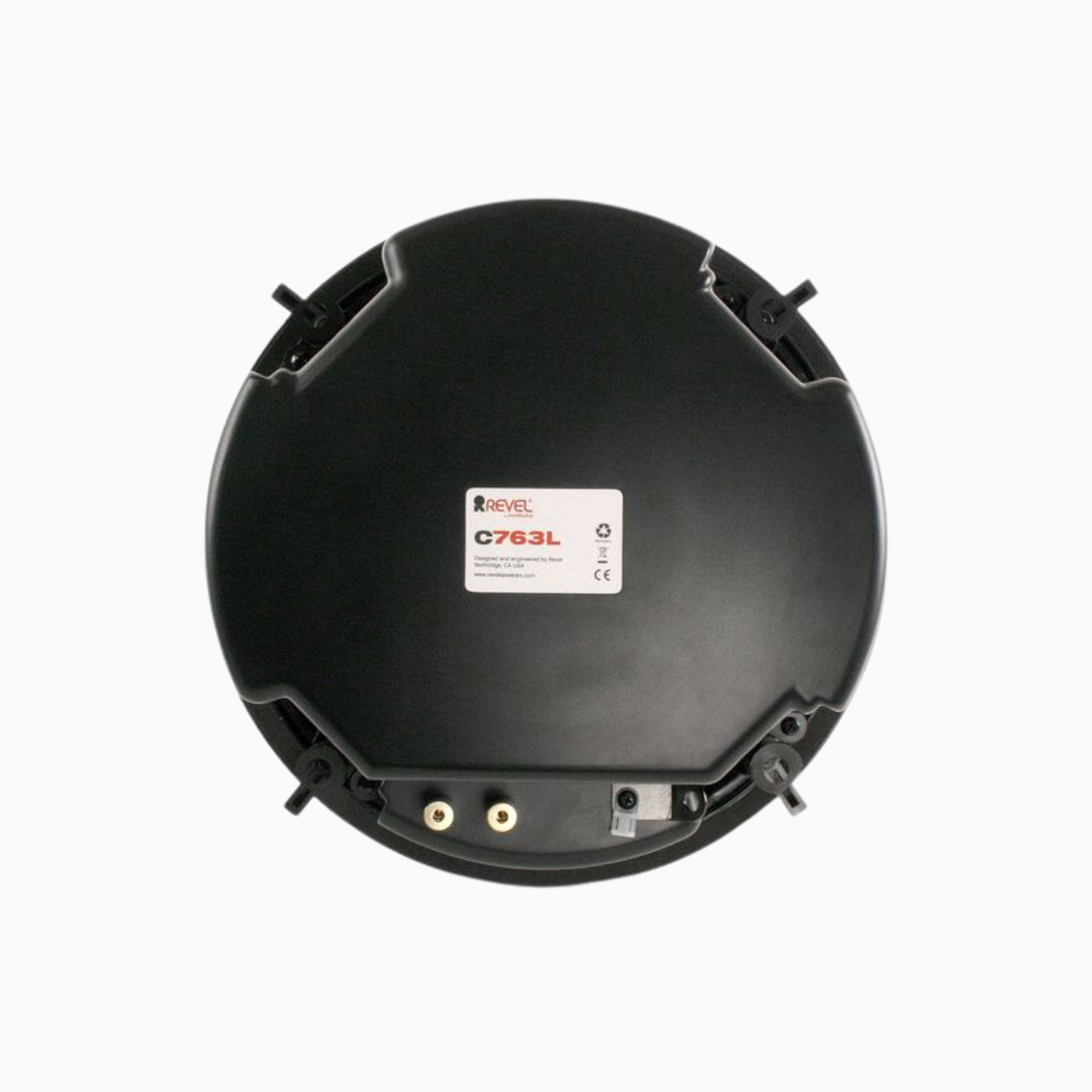

Revel C763L In-Ceiling Loudspeaker

Description

The Revel C763L is a premium architectural in-ceiling loudspeaker engineered to deliver exceptional performance for immersive home theater and high-fidelity distributed audio installations. Designed using the same acoustic principles and engineering expertise found in Revel’s award-winning loudspeaker range, the C763L offers remarkable clarity, wide dispersion, and precise imaging while remaining discreetly integrated into the ceiling.

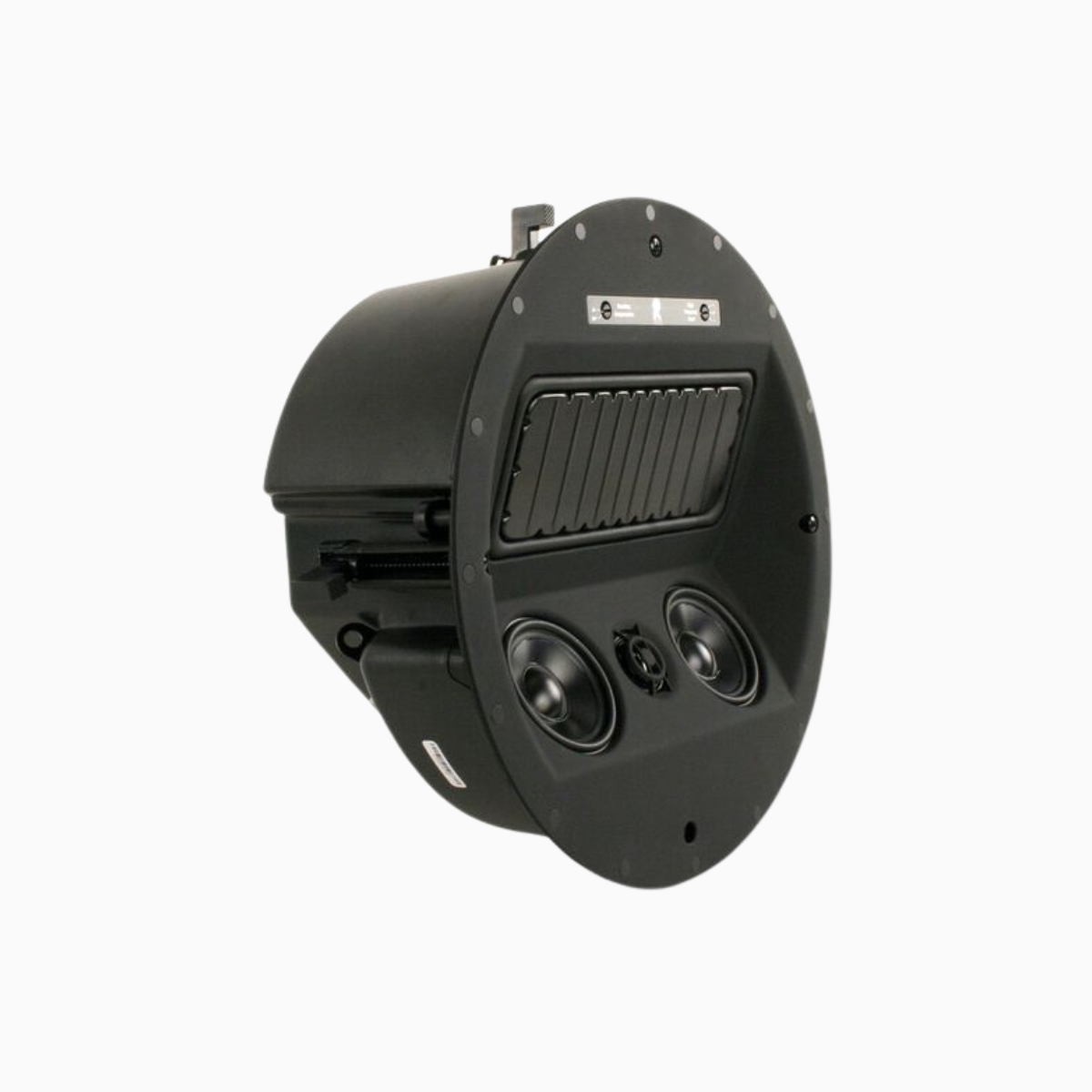

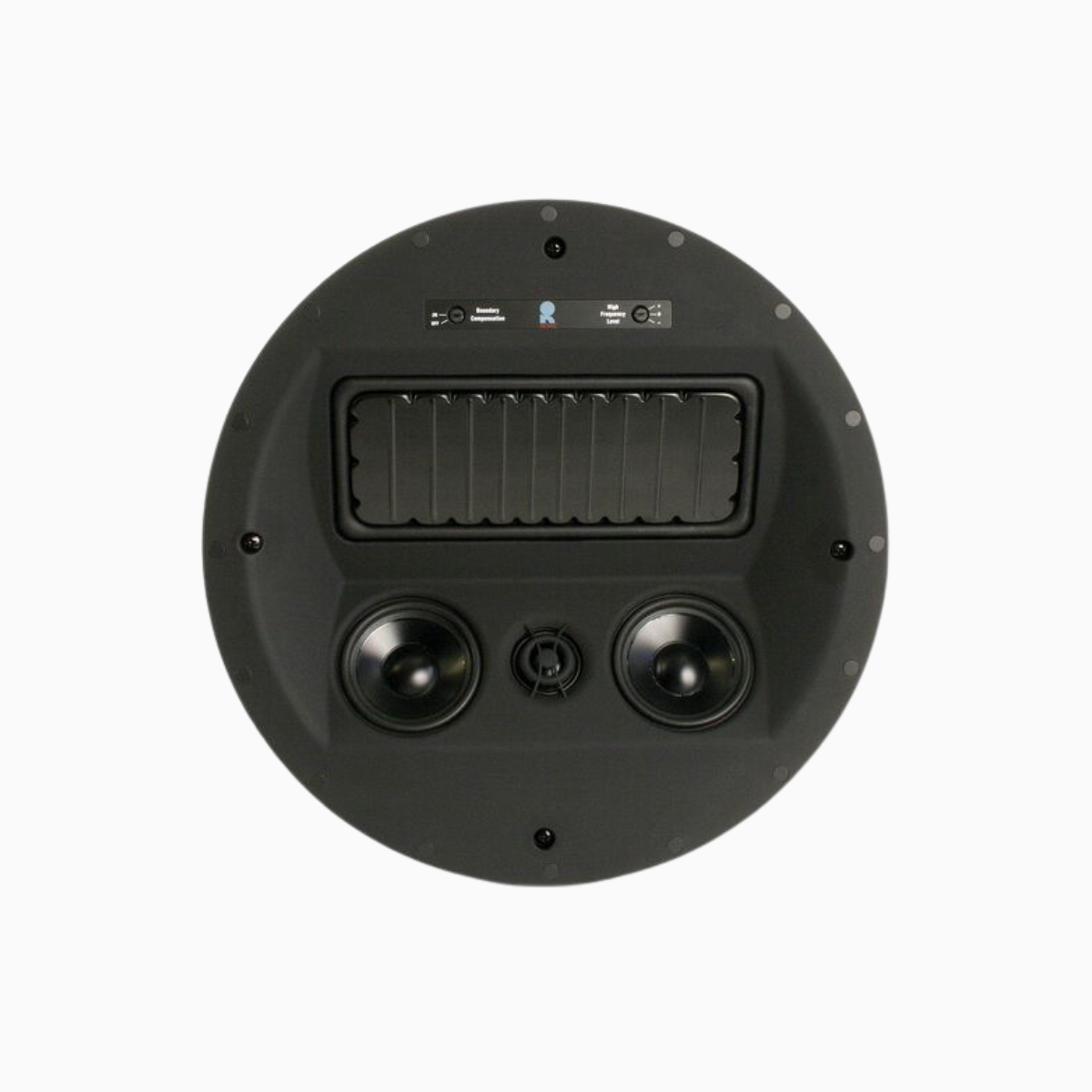

Featuring an advanced multi-driver configuration, the C763L combines a 1-inch angle-adjustable aluminum dome tweeter with integrated waveguide technology, dual 3.5-inch Micro-Ceramic Composite (MCC) midrange drivers, and a unique 7.8-inch x 3.4-inch MCC flat-panel woofer. This sophisticated design delivers accurate dialogue reproduction, detailed midrange performance, and controlled low-frequency output with minimal distortion. High-order crossover networks with premium-grade components ensure seamless driver integration and natural tonal balance throughout the listening area. The speaker also includes boundary compensation and three-position tweeter level controls, allowing precise acoustic adjustment based on room placement and listening preferences. Supplied with both round and square zero-bezel magnetic grilles, the C763L blends elegantly into modern interiors while delivering powerful, room-filling sound.

Key Features

• Premium In-Ceiling LCR / Surround Loudspeaker
• 1-Inch Angle-Adjustable Aluminum Dome Tweeter with Integrated Waveguide
• Dual 3.5-Inch Micro-Ceramic Composite (MCC) Midrange Drivers
• 7.8-Inch x 3.4-Inch MCC Flat-Panel Woofer
• High-Order Crossover Network with Premium Components
• Boundary Compensation Switch for Optimized Room Placement
• Three-Position Tweeter Level Control
• Wide Dispersion Performance for Consistent Listening Coverage
• Low Distortion Long-Throw Drivers with Cast Frames

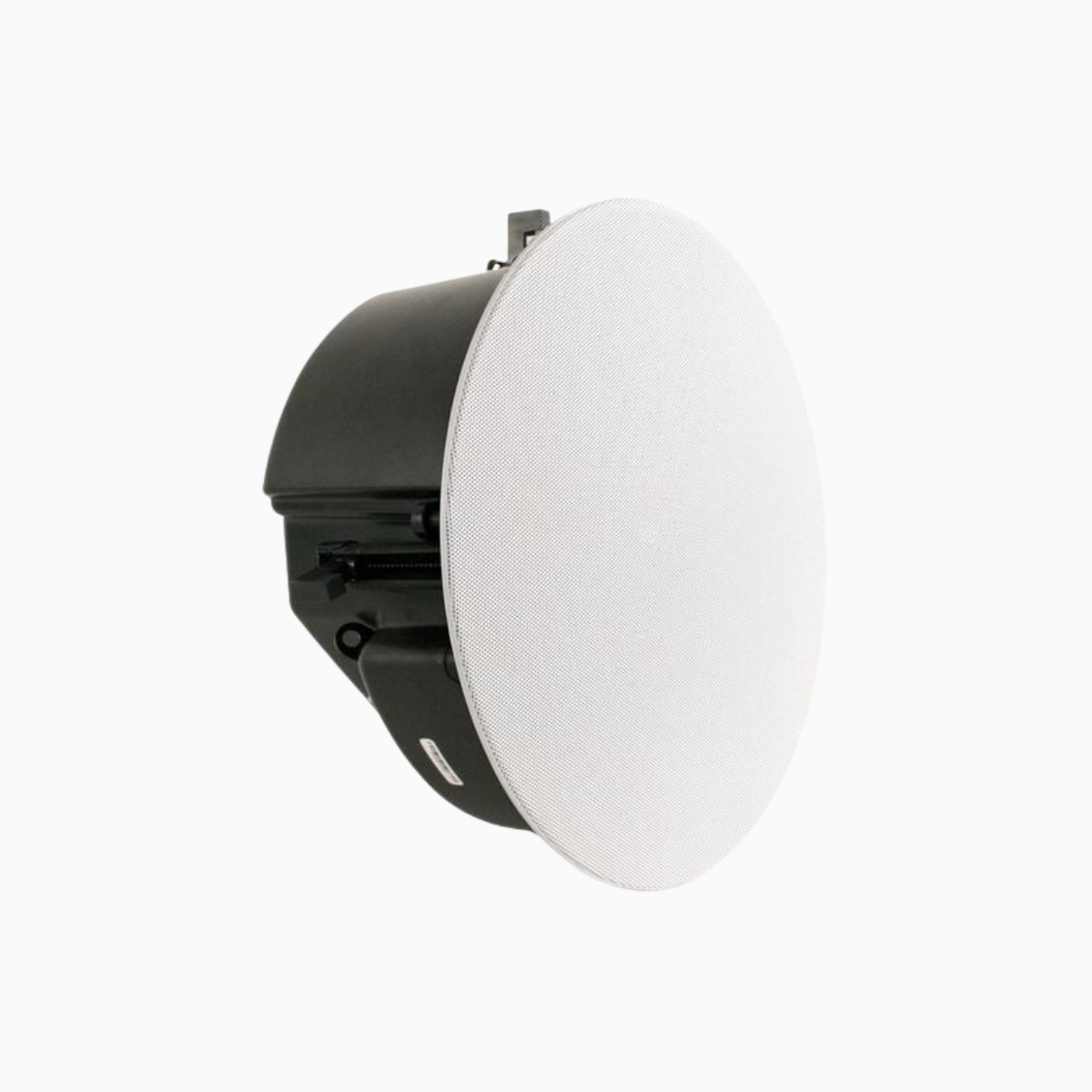

• Includes Round and Square Zero-Bezel Magnetic Grilles
• C-2 Mounting System for Secure Installation
• Ideal for Home Theater, Dolby Atmos, and Luxury Audio Installations

Technical Specifications

• Speaker Type: In-Ceiling Loudspeaker
• Tweeter: 1" (25mm) Angle-Adjustable Aluminum Dome with Waveguide
• Midrange Drivers: Dual 3.5" Micro-Ceramic Composite (MCC) Cone Drivers
• Woofer: 7.8" x 3.4" MCC Flat-Panel Woofer
• Recommended Amplifier Power: 10 – 200 Watts RMS
• Sensitivity: 86dB
• Tweeter Adjustment: 3-Position High-Frequency Level Control
• Boundary Compensation: Yes
• Mounting Depth: 5.7" (14.5 cm)
• Grille Size: 12.5" x 12.5" (31.8 cm)
• Mounting System: C-2 Fastening Mechanism
• Compatible Ceiling Thickness: 0.5" – 2.0" (1.3 cm – 5.0 cm)
• Weight: 1.8 kg Each
• Included Accessories: Round and Square Zero-Bezel Magnetic Grilles
