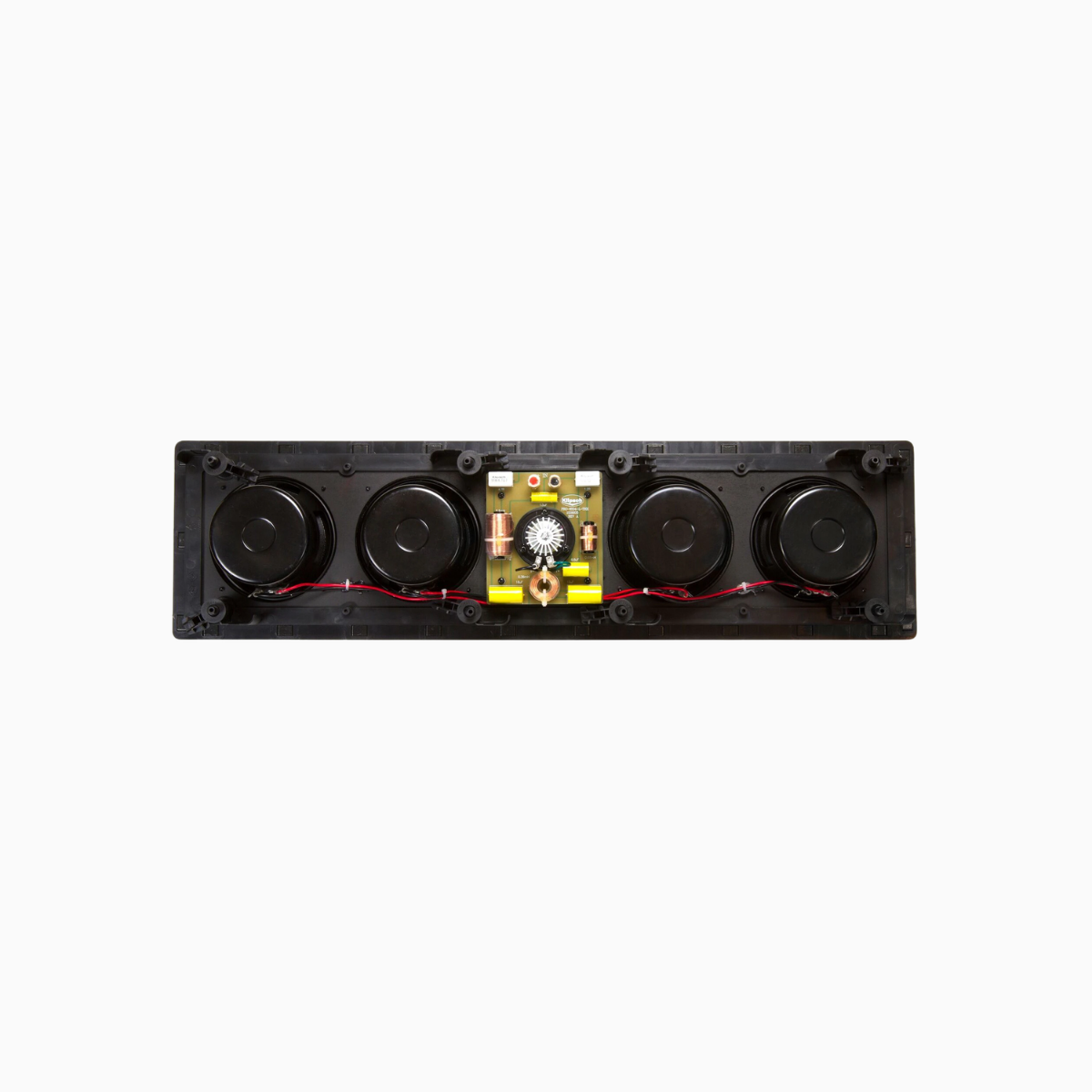

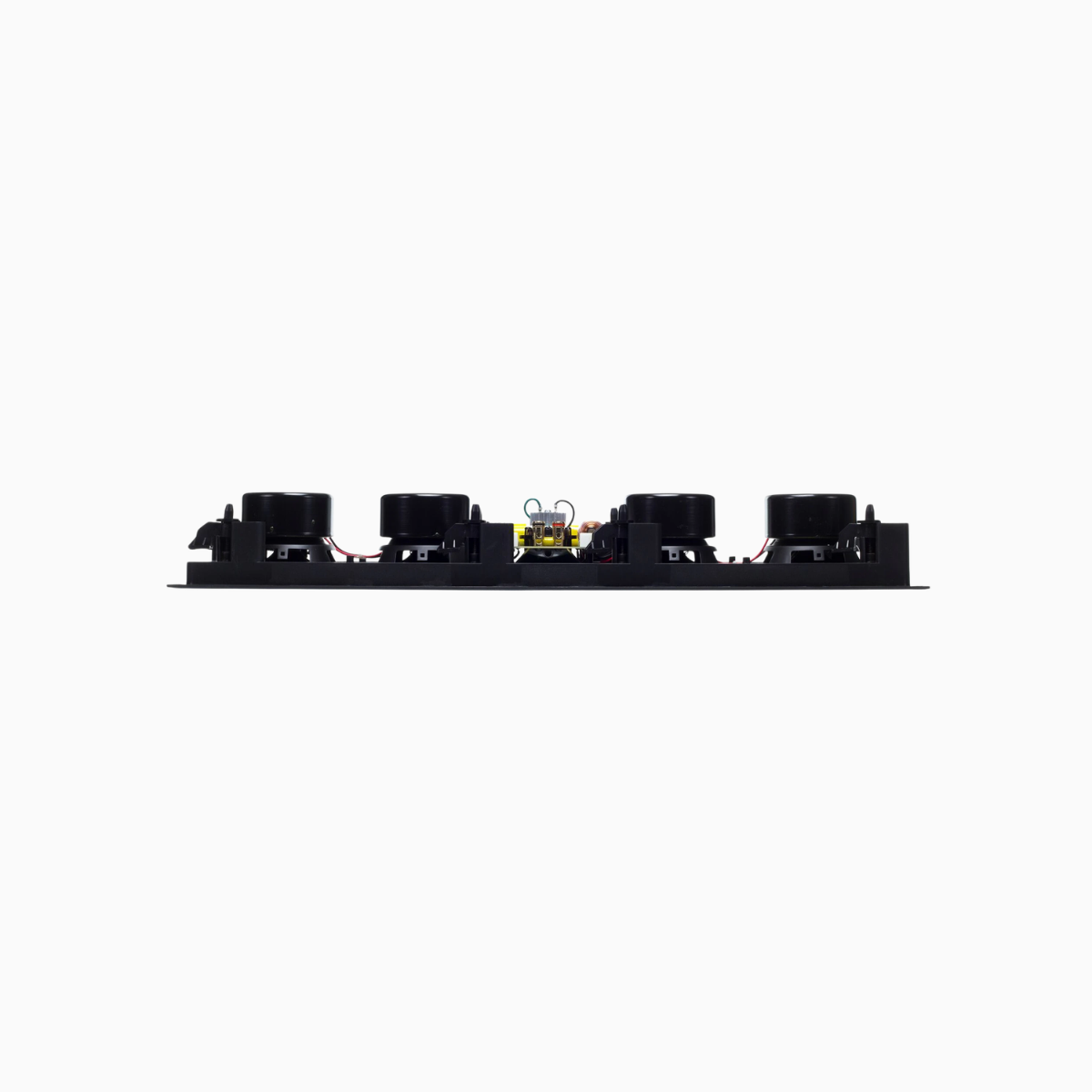

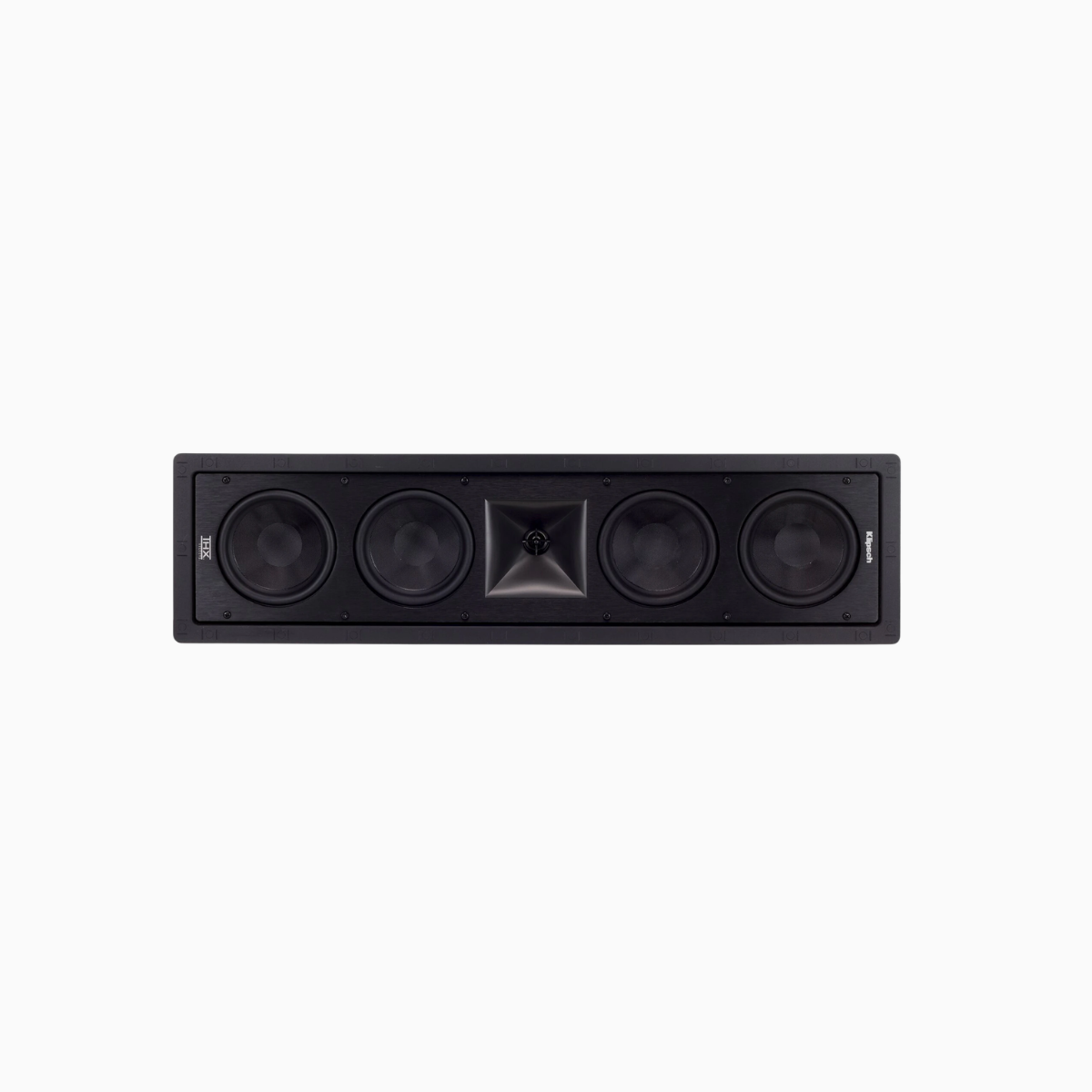

Klipsch THX-504-L In-Wall Speaker
Description
The Klipsch THX-504-L is a high-performance THX® Select2 Certified in-wall speaker engineered to deliver true cinema-quality sound while maintaining a clean, discreet installation. Designed for premium home theaters, media rooms, and dedicated cinema spaces, the THX-504-L combines Klipsch’s legendary horn-loaded technology with four high-output fiberglass woofers to create powerful dynamics, exceptional dialogue clarity, and immersive surround sound performance. Whether used as a left, center, right, or surround channel speaker, it delivers the precision and impact required for reference-level home theater experiences.
Featuring a 1-inch titanium diaphragm compression driver coupled to a 90° x 90° square Tractrix® horn, the THX-504-L produces detailed highs with outstanding efficiency and low distortion. Four 5.25-inch fiberglass cone woofers provide authoritative bass and dynamic midrange performance, while the slim in-wall design allows seamless integration into modern interiors.
Key Features
- THX® Select2 Certified in-wall speaker
- 1-inch titanium diaphragm compression driver
- 90° x 90° square Tractrix® horn technology
- Four 5.25-inch high-output fiberglass cone woofers
- Designed for LCR and surround channel applications
- Cinema-grade dynamics and dialogue clarity
- High efficiency with low distortion performance
- Flexible horizontal or vertical installation

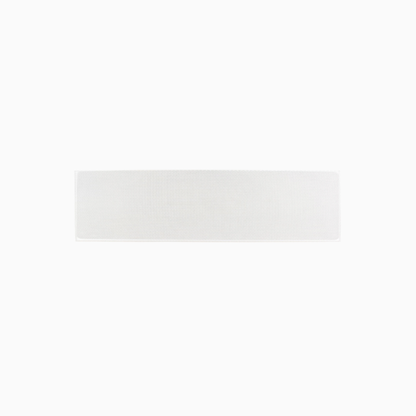

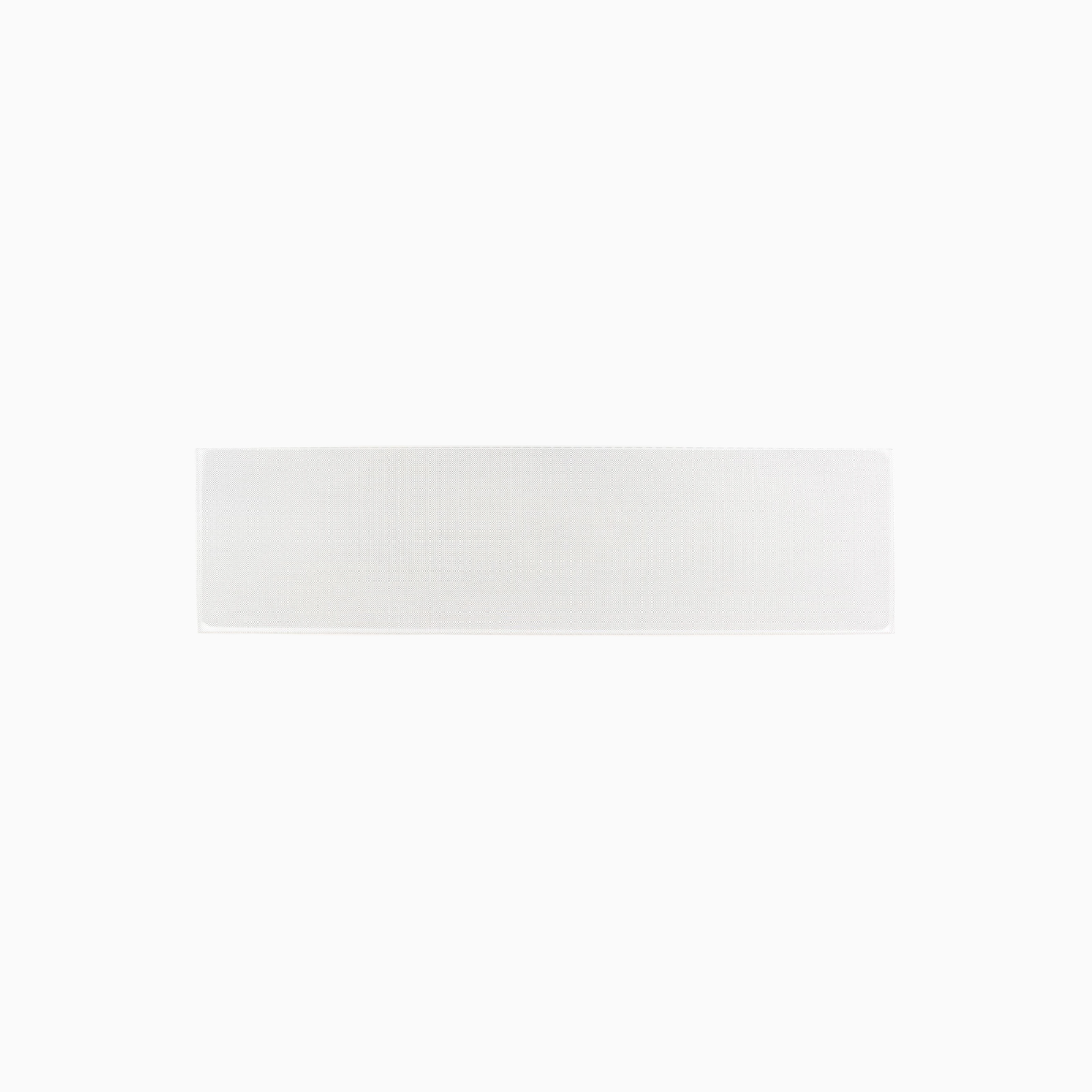

- Paintable edge-to-edge magnetic grille
- Timbre-matched with Klipsch THX-certified speakers
- Ideal for dedicated home theaters and media rooms
- Premium in-wall design with discreet aesthetics
Technical Specifications
- Speaker Type: 2-Way In-Wall Speaker
- THX Certification: THX® Select2 Certified
- Frequency Response: 46Hz – 20kHz (±3dB)
- Sensitivity: 92dB @ 2.83V / 1m
- Power Handling: 150 Watts Continuous / 600 Watts Peak
- Recommended Amplifier Power: 150 Watts
- Nominal Impedance: 8 Ohms Compatible
- High Frequency Driver: 1-inch (2.5cm) Titanium Diaphragm Compression Driver
- Horn Type: 90° x 90° Square Tractrix® Horn
- High Frequency Crossover: 250Hz & 2100Hz
- Low Frequency Drivers: Four 5.25-inch (13.3cm) High-Output Fiberglass Cone Woofers
- Enclosure Material: MDF & Aluminum Motorboard / ABS Frame
- Enclosure Type: Infinite Baffle, Front Flush with Wall
- Dimensions (H x W): 72.4 x 20.3 cm
- Cutout Dimensions: 69.2 x 16.5 cm
- Mounting Depth: 9.5 cm
- Weight: 8.3 kg
- Finish: White Paintable Grille
