EverSolo DAC-Z10 Reference Desktop DAC & Fully Balanced Preamplifier

Description

The EverSolo DAC-Z10 is a flagship reference-grade digital-to-analog converter (DAC) and fully balanced analog preamplifier designed for audiophiles who demand uncompromising sound quality. Built on EverSolo's Fully Isolated Architecture (FIA), the DAC-Z10 combines dual-mono AKM flagship DAC modules, precision clock technology, triple ultra-low-noise linear power supplies, and a high-performance analog stage to deliver exceptional musical detail, ultra-low distortion, and an expansive soundstage.

At the heart of the DAC-Z10 are independent AK4191EQ + AK4499EX DAC chipsets for the left and right channels, ensuring complete channel separation and maximum audio purity. A precision R2R analog resistor ladder volume control, premium OPA1612 operational amplifiers, and EverSolo's Precision Core™ clock system with OCXO temperature-controlled oscillator, FPGA clock reconstruction, and PLL jitter suppression work together to reproduce music with remarkable realism and accuracy.

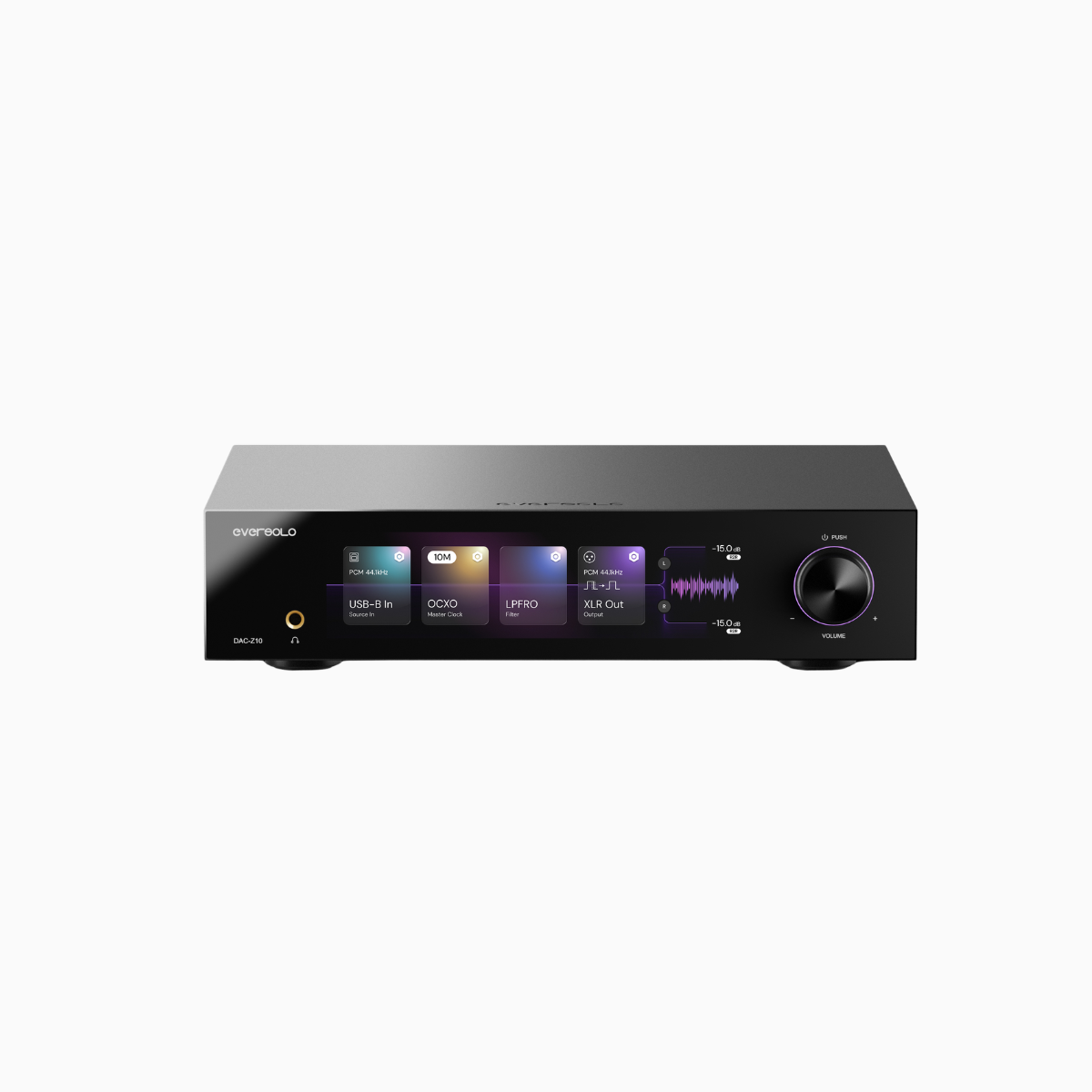

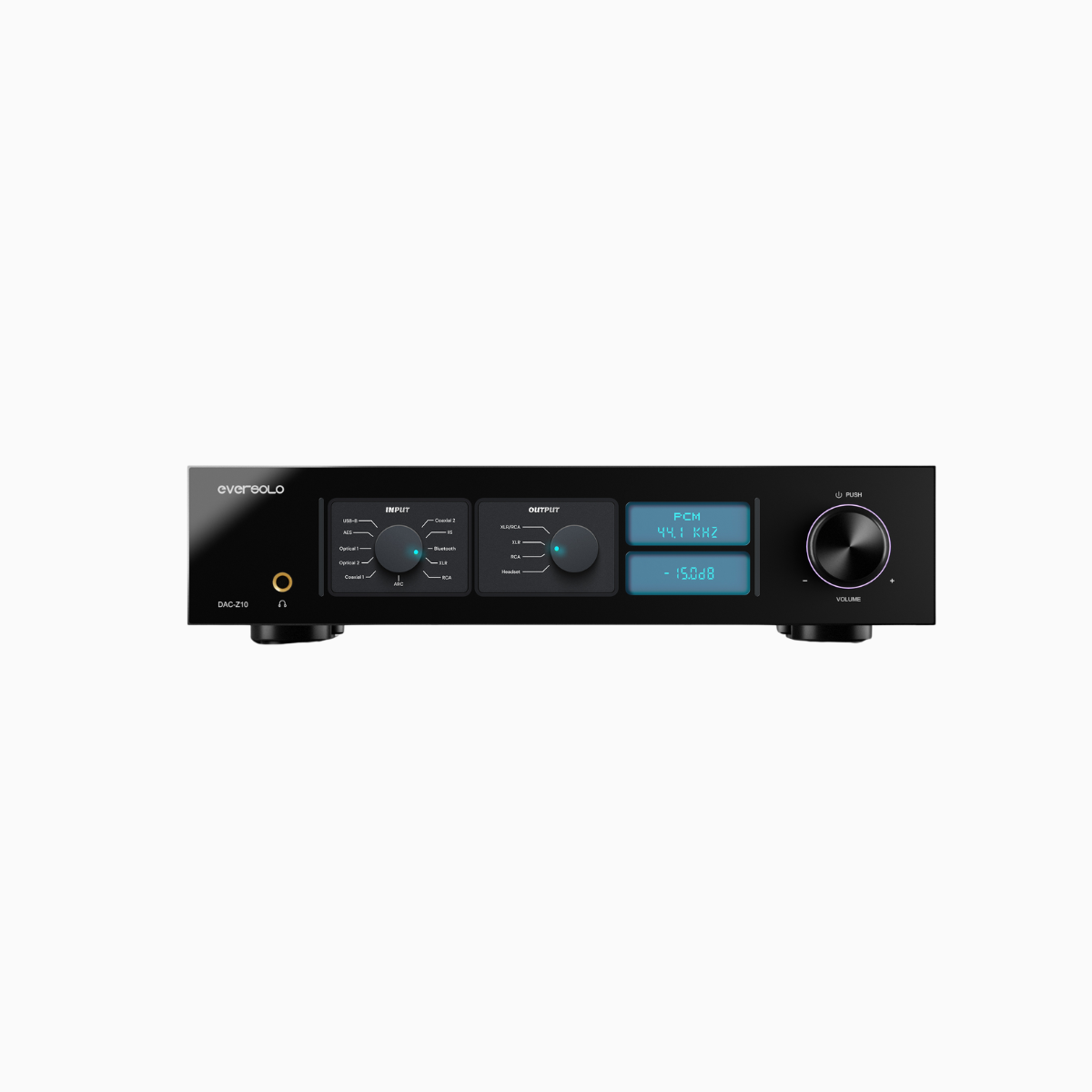

The elegant CNC-machined aluminium chassis features a vibrant 8.8-inch IPS touchscreen that provides intuitive access to inputs, volume, format information, and customizable VU meters. Designed as the centerpiece of a high-end Hi-Fi system, the DAC-Z10 offers extensive digital and analog connectivity including USB-B, HDMI ARC, IIS, AES/EBU, optical, coaxial, Bluetooth, balanced XLR, RCA, and a dedicated high-performance headphone amplifier.

Whether paired with the EverSolo T8 Streaming Transport or other premium digital sources, the DAC-Z10 delivers reference-level decoding, exceptional dynamics, and the flexibility required for modern high-end audio systems.

Key Features

• Flagship reference desktop DAC and analog preamplifier
• Fully Isolated Architecture (FIA)
• Dual-mono AK4191EQ + AK4499EX DAC architecture
• Triple ultra-low-noise linear power supplies
• Precision Core™ clock system
• OCXO temperature-controlled crystal oscillator
• FPGA clock reconstruction technology
• High-precision R2R analog volume control
• Fully balanced analog preamplifier
• Premium OPA1612 operational amplifiers
• 8.8-inch IPS touchscreen display
• HDMI ARC input
• USB-B Audio input
• IIS (HDMI) digital input
• AES/EBU professional digital input
• Dual Optical and Dual Coaxial inputs
• Bluetooth 5.0 wireless audio
• Balanced XLR and RCA analog inputs & outputs
• Dedicated 6.35mm headphone amplifier
• External 10MHz / 25MHz master clock input
• Supports PCM up to 32-bit/768kHz
• Native DSD512 playback
• CNC-machined aluminium chassis

Technical Specifications

• Brand: EverSolo
• Model: DAC-Z10
• Product Type: Desktop DAC & Fully Balanced Analog Preamplifier
• DAC Architecture: Dual AK4191EQ + Dual AK4499EX (Dual-Mono)
• Audio Processor: Multi-Core USB Audio Processor
• Operational Amplifier: OPA1612
• Volume Control: High-Precision R2R Analog Resistor Ladder
• Clock System: Precision Core™ with OCXO, FPGA & PLL
• Display: 8.8-inch IPS Touchscreen
• Main Processor: DCP8568
• PCM Support: Up to 32-bit / 768kHz
• DSD Support: Native DSD512
• Dynamic Range (XLR): 130 dB
• Signal-to-Noise Ratio (XLR): 130 dB (A-Weighted)
• THD+N (XLR): 0.00008%
• Dynamic Range (RCA): 128 dB
• Signal-to-Noise Ratio (RCA): 128 dB (A-Weighted)
• THD+N (RCA): 0.000097%
• Headphone Output: 6.35mm Single-Ended
• Recommended Headphone Impedance: 16–300 Ohms

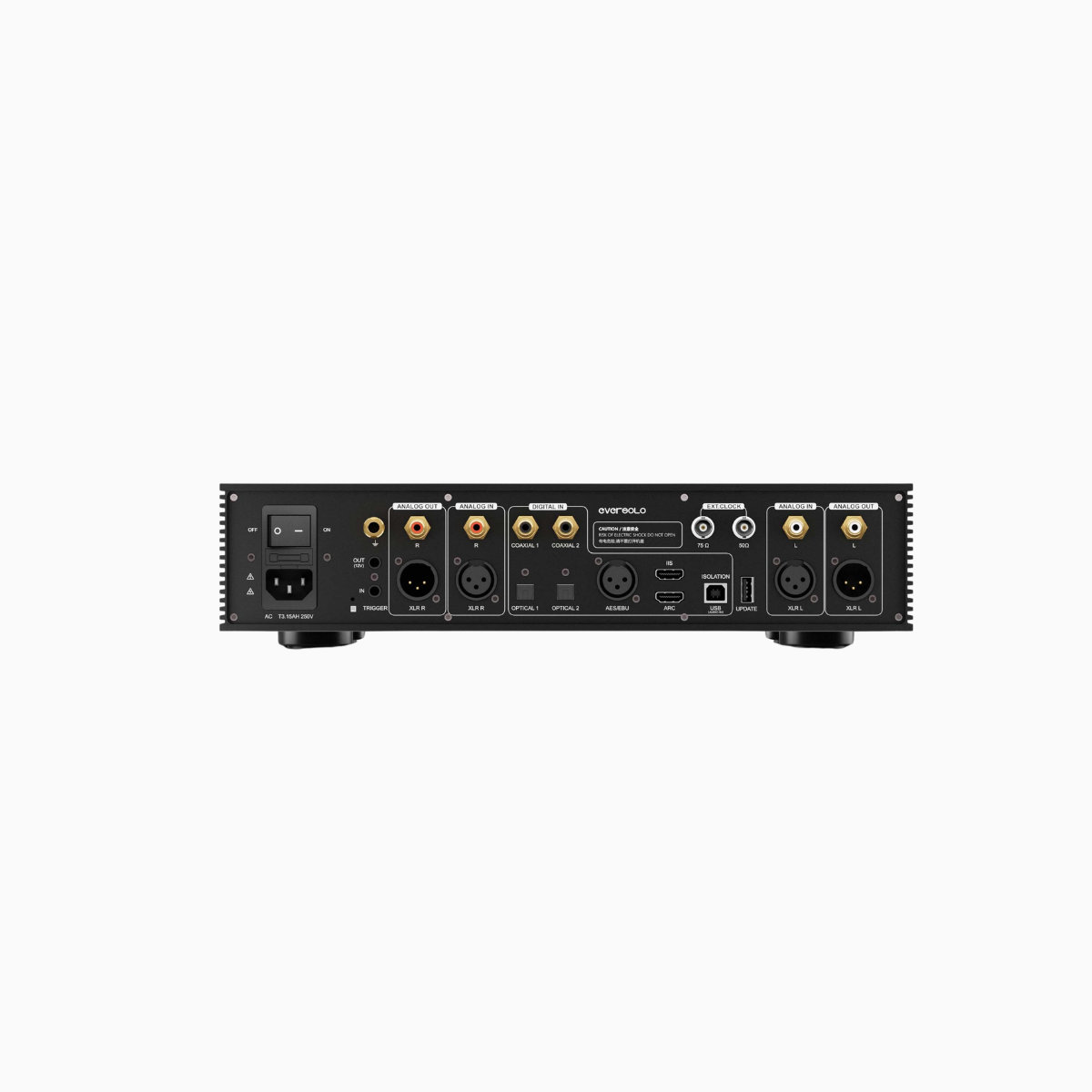

• Analog Inputs: Balanced XLR, Stereo RCA
• Analog Outputs: Balanced XLR, Stereo RCA
• Digital Inputs: USB-B, HDMI ARC, IIS (HDMI), AES/EBU, 2 × Optical, 2 × Coaxial
• Bluetooth Version: Bluetooth 5.0
• Bluetooth Codecs: SBC, AAC
• External Clock Input: 10MHz / 25MHz (50Ω / 75Ω)
• Power Supply: Triple Ultra-Low-Noise Linear Power Supplies
• Chassis Material: CNC-Machined Aluminium Alloy
• Power Consumption: 32W
• Dimensions (W × D × H): 365 × 310 × 88 mm
• Weight: 4.5 kg
• Colour: Black
