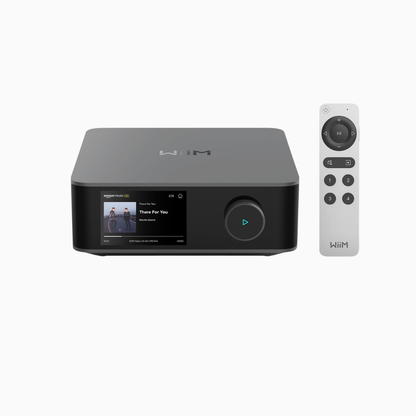

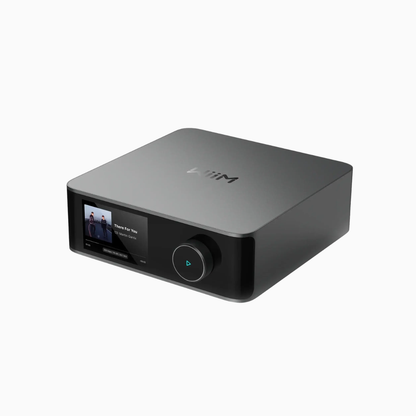

WiiM Amp Ultra Streaming Integrated Amplifier

Description

The WiiM Amp Ultra is a flagship streaming integrated amplifier designed to combine powerful amplification with advanced smart streaming capabilities in a single compact unit. Built for modern hi-fi and home entertainment systems, it delivers clean, detailed, and dynamic sound while eliminating the need for multiple components.

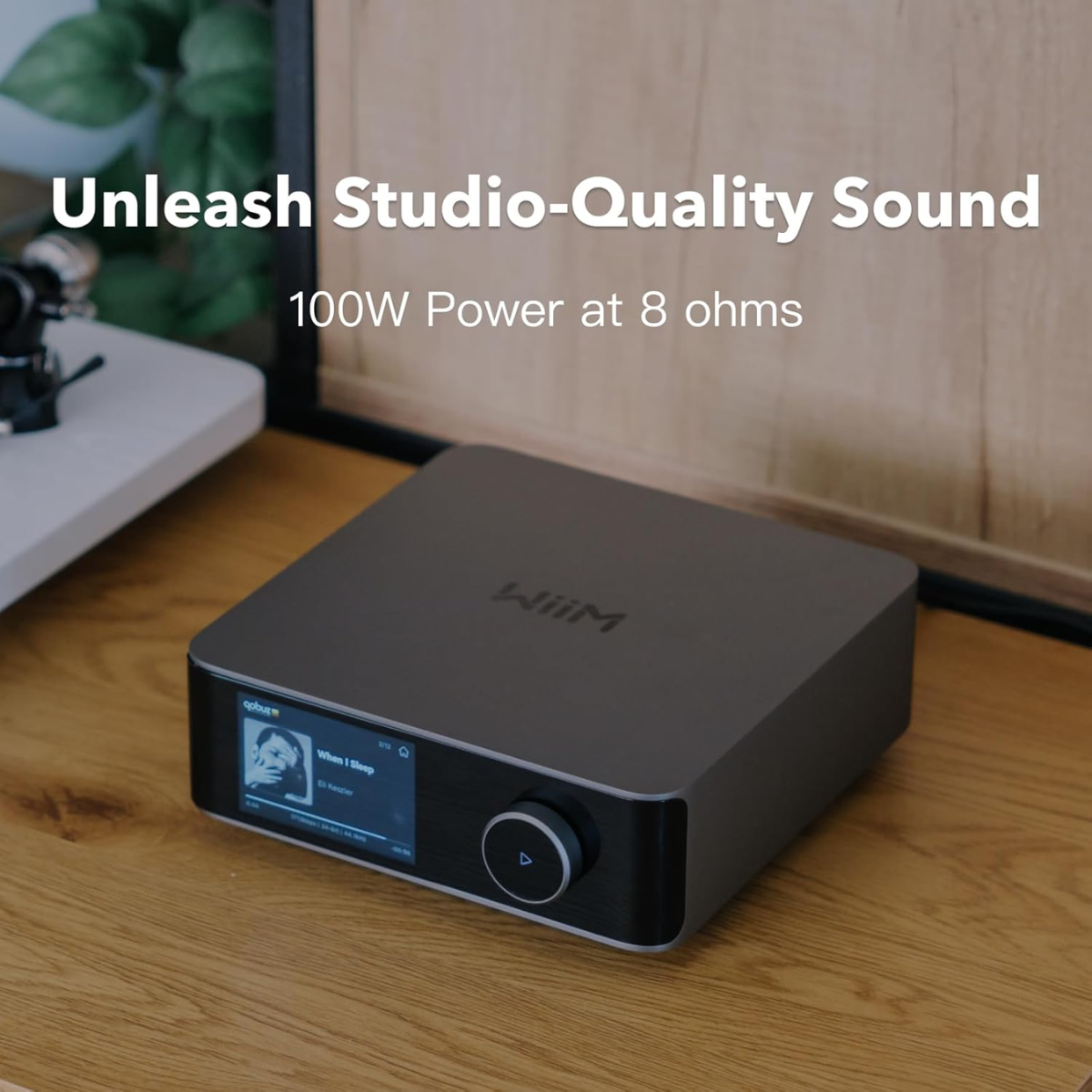

Powered by high-efficiency Class D amplification, the Amp Ultra delivers 100W per channel at 8 ohms and up to 200W at 4 ohms, providing ample power to drive a wide range of bookshelf and floorstanding speakers with ease . Its advanced internal architecture includes a premium ESS Sabre DAC supporting high-resolution audio up to 24-bit/192kHz, ensuring precise and detailed sound reproduction .

What sets the Amp Ultra apart is its fully integrated streaming platform. With built-in Wi-Fi, Bluetooth 5.3, Google Cast, Spotify Connect, TIDAL Connect, and multi-room support via the WiiM Home app, it allows seamless access to music from virtually any source . The addition of a 3.5-inch touchscreen display and intuitive controls further enhances usability, making it easy to manage playback, adjust settings, and view content directly from the device .

Designed for versatility, the Amp Ultra includes HDMI ARC for TV integration, along with analog and digital inputs to connect a variety of external sources. Advanced features such as room correction and EQ tuning ensure optimized performance tailored to your listening space .

Compact, powerful, and feature-rich, the WiiM Amp Ultra is an all-in-one solution for users seeking high-performance amplification combined with modern streaming convenience.

Key Features

• 100W per channel at 8 ohms and up to 200W at 4 ohms for powerful sound performance
• Built-in streaming with Wi-Fi, Bluetooth 5.3 and multi-room audio support
• ESS Sabre DAC with support for up to 24-bit/192kHz high-resolution audio
• Integrated support for Spotify Connect, TIDAL Connect, Google Cast and internet radio
• 3.5-inch touchscreen display for easy control and playback management
• HDMI ARC for seamless TV connectivity
• Room correction and EQ tuning via WiiM Home app

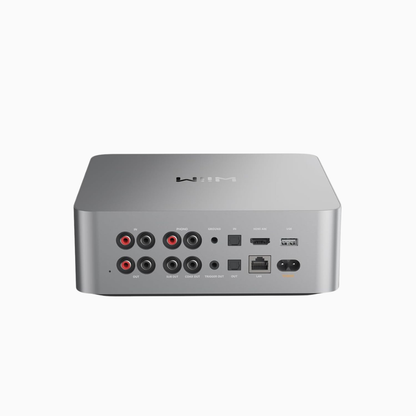

• Multiple inputs including RCA, optical, USB and Ethernet
• Subwoofer output for enhanced low-frequency performance
• Compact aluminium chassis with premium design and thermal management

Technical Specifications

• Model: Amp Ultra
• Product Type: Streaming Integrated Amplifier
• Channels: 2.0
• Amplification: Class D
• Power Output: 100W x 2 (8Ω), 200W x 2 (4Ω)
• DAC: ESS Sabre (ES9039Q2M)
• Audio Resolution: Up to 24-bit / 192kHz
• Frequency Response: 20Hz – 20kHz
• Signal to Noise Ratio: ≥120 dB
• THD+N: ≤0.005%

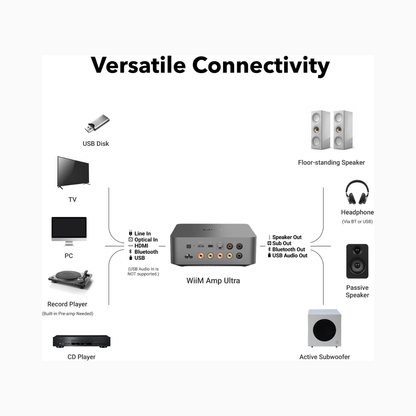

Connectivity

• HDMI ARC
• Bluetooth 5.3
• Wi-Fi 6 / Ethernet
• RCA input
• Optical input
• USB-A
• Subwoofer output

Features

• Streaming platforms: Spotify Connect, TIDAL Connect, Google Cast, DLNA
• App control: WiiM Home app
• Voice control: Alexa, Google Assistant support
• Display: 3.5-inch touchscreen

Build & Design

• Chassis: Aluminium
• Finish Options: Silver, Space Grey
• Form Factor: Compact desktop design
