WiiM Amp Wireless Streaming Amplifier

Description

Experience the perfect fusion of power and precision with the WiiM Amp Stereo Streaming Amplifier — the intelligent amplifier that brings high-fidelity performance to any passive speaker system. Designed for audiophiles and home entertainment enthusiasts, the WiiM Amp transforms traditional speakers into a modern, wireless, and fully connected audio setup.

Equipped with a TI TPA3255 Class-D amplifier and a premium ESS 9018K2M DAC, the WiiM Amp delivers 120W per channel (at 4Ω) with exceptional clarity, deep bass, and minimal distortion (THD+N −92 dB). Enjoy bit-perfect, high-resolution playback up to 192 kHz/24-bit, supporting AirPlay 2, Google Cast, Alexa Cast, Spotify Connect, TIDAL Connect, DLNA, and Roon Ready streaming.

Its versatile connectivity options include HDMI ARC, Optical In, Line In, Sub Out, USB Out, and Ethernet, making it ideal for music, movies, and TV integration. The built-in RoomFit™ Room Correction, 10-band EQ, and multi-room audio support ensure perfectly tuned sound for every environment.

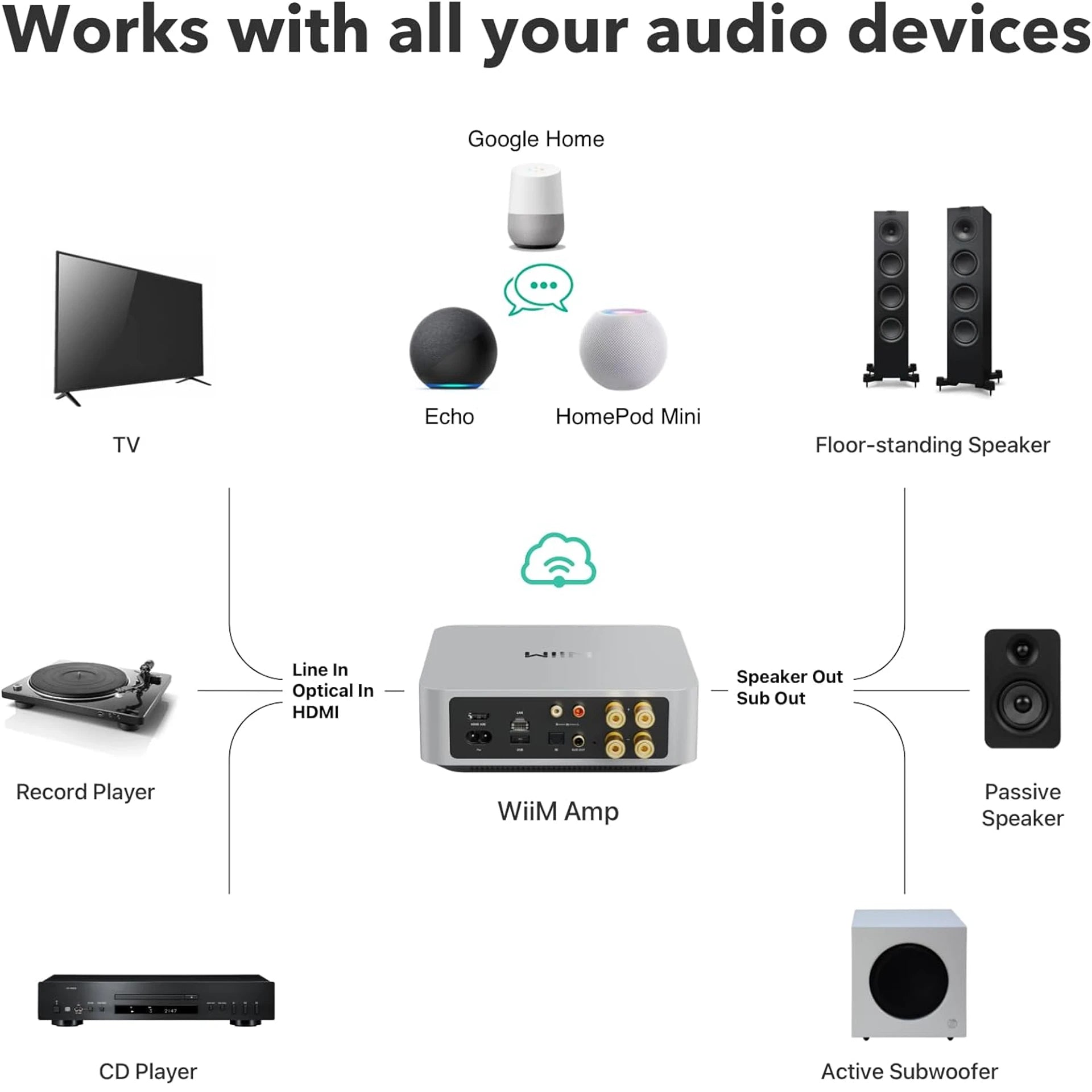

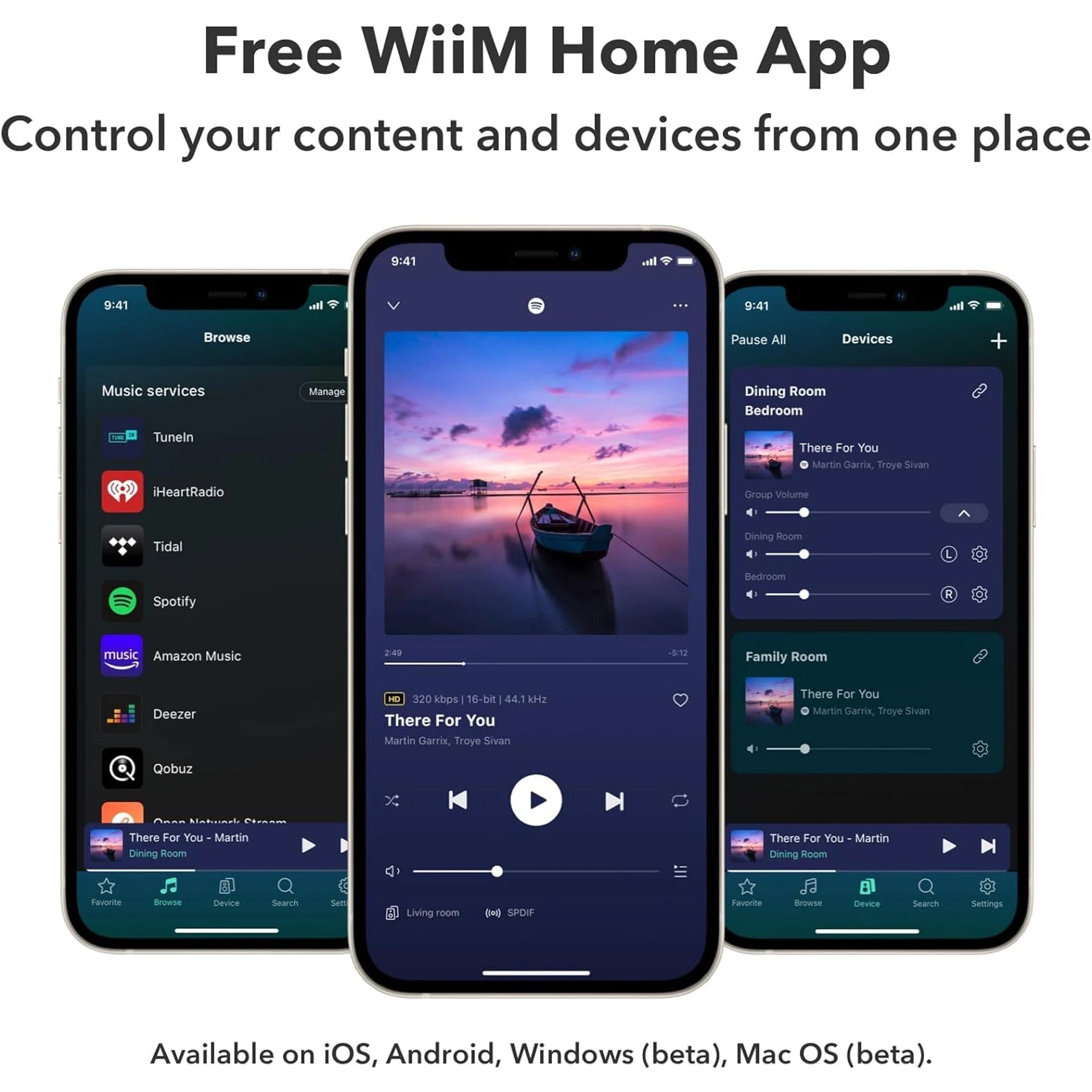

Whether you’re streaming from your phone, connecting a TV, or playing vinyl, the WiiM Amp adapts seamlessly. With the WiiM Home App and voice control via Alexa, Siri, or Google Assistant, this compact yet powerful amplifier redefines what smart audio amplification can be.

Key Features:

• 120W per channel (4Ω) stereo streaming amplifier (TI TPA3255)

• ESS 9018K2M DAC for audiophile-grade precision (108 dB SNR)

• Supports AirPlay 2, Alexa Cast, Google Cast, Spotify Connect, TIDAL Connect, DLNA, and Roon Ready

• Works with Alexa, Siri, and Google Assistant for voice control

• Wi-Fi 5, Bluetooth 5.0 (2-way), and Ethernet connectivity

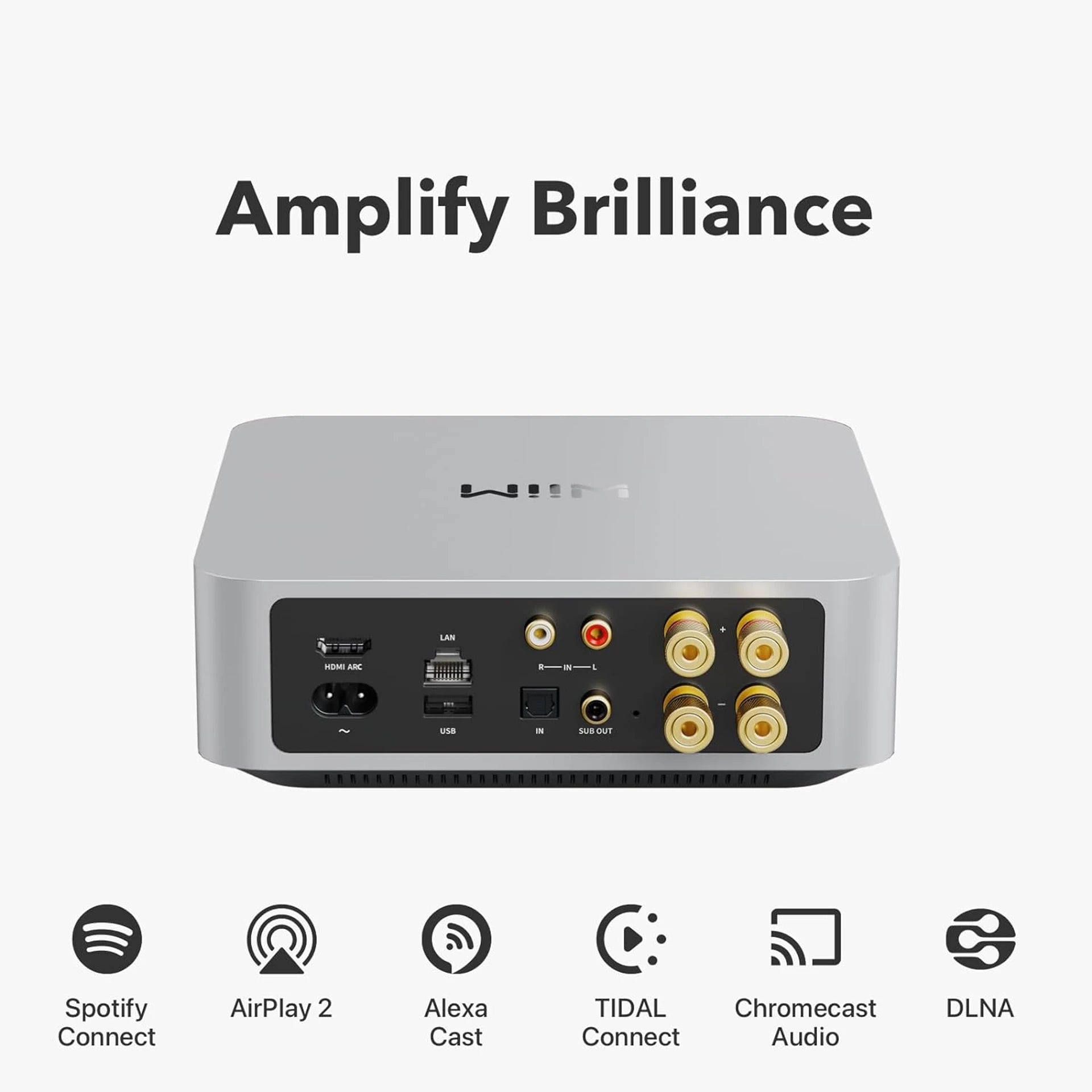

• HDMI ARC, Optical In, Line In, USB Out, and Sub Out

• RoomFit™ Room Correction and 10-band EQ (graphic and parametric)

• WiiM multi-room audio and stereo pairing support

• Gapless playback and ultra-low distortion output

• Compatible with a wide range of bookshelf, floor-standing, in-wall, or outdoor speakers


Technical Specifications:

• Amplifier IC: TI TPA3255 (120 W × 2 @ 4Ω)

• DAC IC: ESS 9018K2M (108 dB SNR, THD+N −92 dB)

• Inputs: HDMI ARC, Optical In (192 kHz/24-bit PCM), Line In (2 Vrms)

• Outputs: Passive Speaker Terminals, Sub Out (2.0 Vrms), USB Audio Out (192 kHz/24-bit)

• Wireless: Wi-Fi 5 (2.4/5 GHz), Bluetooth 5.0, Ethernet LAN 10/100 Mbps

• Processor: Quad-Core A53 | 512 MB DRAM | 512 MB Flash

• Supported Streaming: AirPlay 2, Alexa Cast, Spotify Connect, TIDAL Connect, Roon Ready, DLNA

• Frequency Response: 20 Hz – 20 kHz (±0.2 dB)

• Power Supply: 100–240 V AC, 50/60 Hz

• Dimensions: 190 × 190 × 63 mm

• Weight: 1.84 kg
