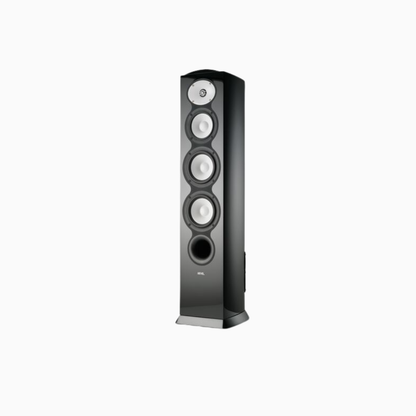

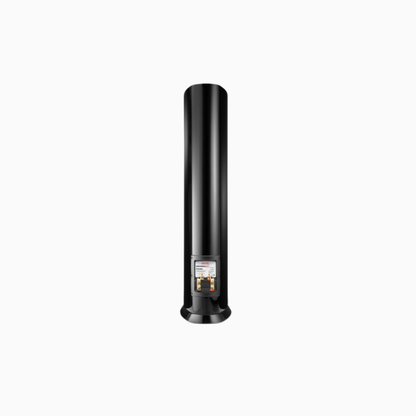

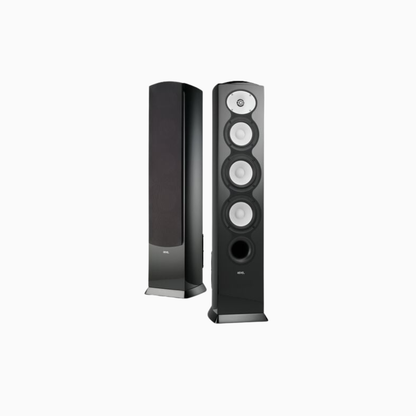

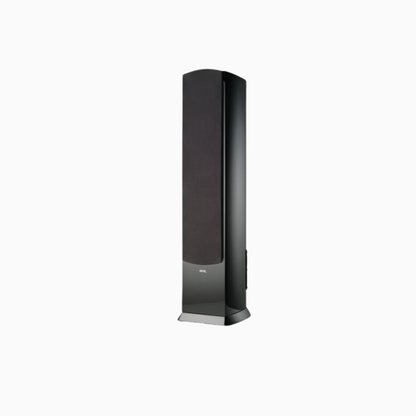

Revel F226Be Floorstanding Loudspeaker

Description

The Revel F226Be is a premium 3-way floorstanding loudspeaker from Revel’s acclaimed PerformaBe series, engineered to deliver exceptional musical accuracy, wide sound dispersion, and powerful dynamic performance. Combining advanced driver technology, precision acoustic engineering, and elegant cabinet craftsmanship, the F226Be is designed for discerning audiophiles and high-end home theatre systems.

At the core of the F226Be is Revel’s renowned 1-inch beryllium dome tweeter paired with a 5th-generation Acoustic Lens waveguide. The ultra-light and highly rigid beryllium diaphragm delivers extraordinary detail, speed, and transparency while maintaining smooth and controlled off-axis response across a wide listening area. The specially engineered waveguide ensures seamless integration between the tweeter and midrange driver for highly accurate imaging and tonal balance.

The speaker features a dedicated 5.25-inch Deep Ceramic Composite (DCC) aluminum midrange driver along with dual 6.5-inch DCC aluminum woofers for tight, articulate bass and highly natural midrange reproduction. Revel’s DCC cone technology uses ceramic-coated aluminum construction to reduce breakup modes and distortion while improving transient response and clarity.

Premium crossover networks utilizing all-film capacitors and air-core inductors ensure precise driver integration and refined sonic performance. The heavily braced cabinet with curved side panels minimizes resonance and coloration, creating a wide, immersive soundstage with excellent depth and imaging precision.

Compact yet highly capable, the Revel F226Be offers exceptional clarity, refined treble performance, and controlled bass response, making it an ideal choice for premium stereo listening and immersive multi-channel home cinema systems.

Key Features

• Premium 3-way floorstanding loudspeaker
• 1-inch beryllium dome tweeter with Acoustic Lens waveguide
• Dual 6.5-inch Deep Ceramic Composite aluminum woofers
• Dedicated 5.25-inch DCC aluminum midrange driver
• Wide dispersion and accurate stereo imaging
• High-order crossover network with premium components
• Bass reflex enclosure with front-firing port
• Curved cabinet with extensive internal bracing
• Bi-wire and bi-amp compatible binding posts
• Available in premium high-gloss finishes
• Ideal for audiophile stereo and home theatre systems

Technical Specifications

• Model: F226Be
• Product Type: 3-Way Floorstanding Loudspeaker
• Tweeter: 1-inch (25mm) Beryllium dome with Acoustic Lens waveguide
• Midrange Driver: 5.25-inch (130mm) Deep Ceramic Composite aluminum cone
• Woofer Configuration: Dual 6.5-inch (165mm) DCC aluminum woofers
• Frequency Response: 44Hz – 40kHz (-6dB)
• Low Frequency Extension:
  • 33Hz (-10dB)
  • 36Hz (-6dB)
  • 48Hz (-3dB)
• Sensitivity: 90 dB (2.83V/1m)
• Nominal Impedance: 8 Ohms
• Recommended Amplifier Power: 50 – 200 Watts RMS
• Crossover Frequencies: 260Hz / 2.1kHz
• Enclosure Type: Bass Reflex with front-mounted port
• Binding Posts: Dual gold-plated binding posts for bi-wire / bi-amp operation
• Available Finishes: Black Gloss, White Gloss, Metallic Silver and Walnut
• Dimensions (H × W × D): 1050 × 249 × 347 mm
• Weight: 26.4 kg each
• Application: Audiophile stereo, luxury home theatre, reference listening
