Revel W253L In-Wall LCR Loudspeaker

Description

The Revel W253L is a premium in-wall LCR loudspeaker engineered for high-performance home theatre and distributed audio installations. Designed for both vertical and horizontal orientation, the W253L is ideal for use as a left, center, or right channel speaker, making it a flexible solution for modern architectural audio systems and wall-mounted TV setups.

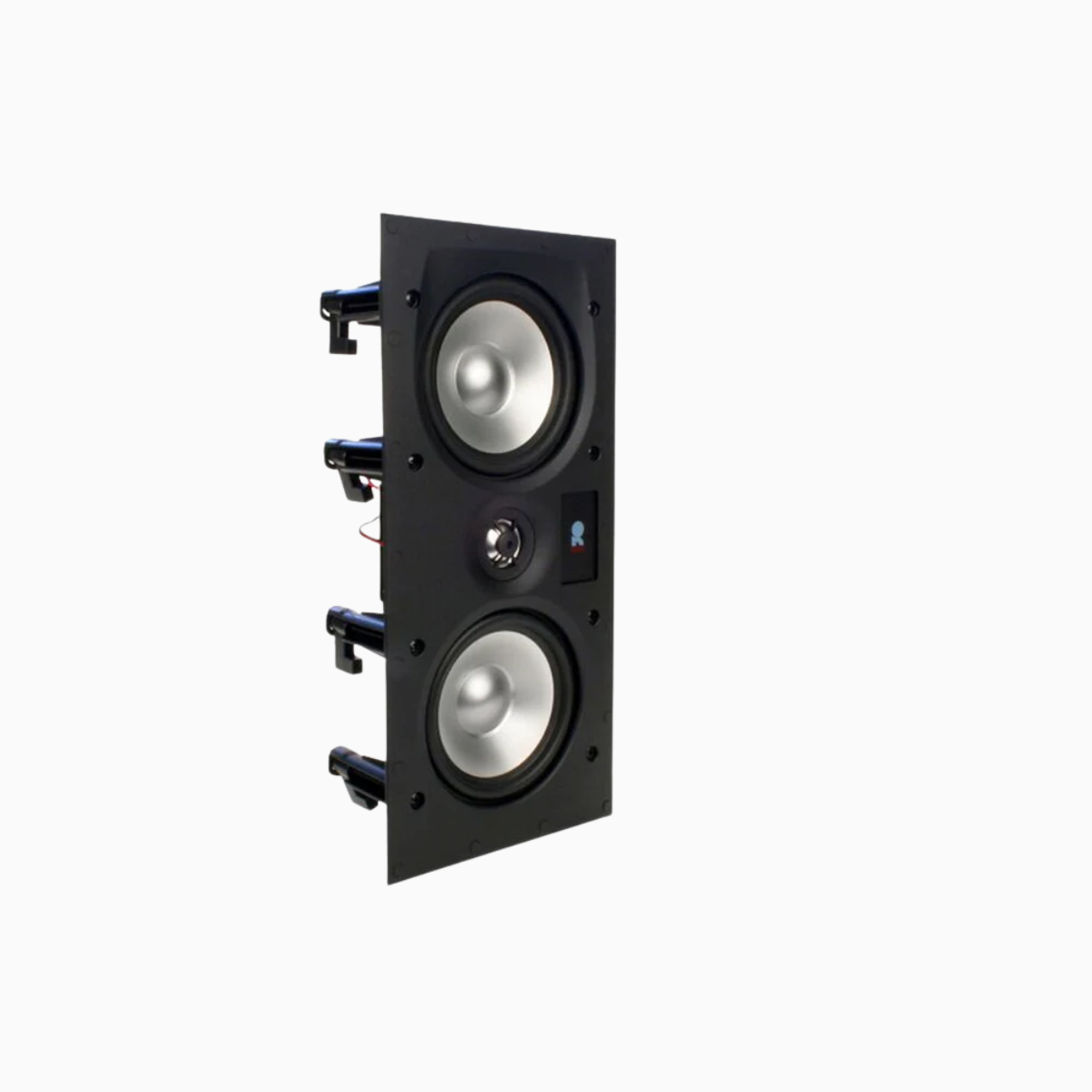

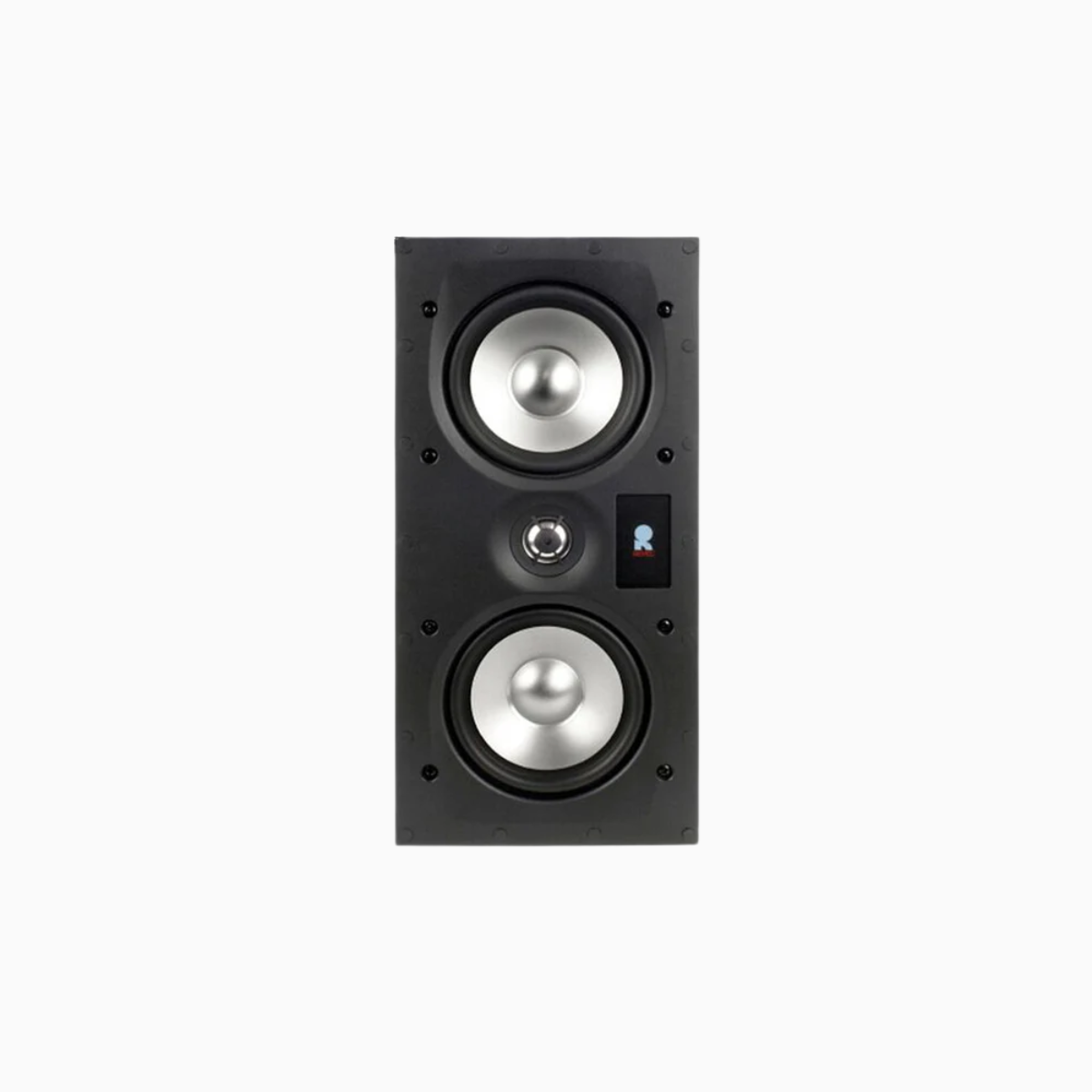

Built using Revel’s advanced acoustic engineering principles, the W253L features dual 5.25-inch aluminum cone woofers paired with a 1-inch aluminum dome tweeter and integrated waveguide technology. This configuration delivers powerful, low-distortion bass, clear vocal reproduction, and smooth high-frequency response with excellent off-axis performance across a wide listening area.

The integrated waveguide helps maintain consistent tonal balance and imaging whether the speaker is installed vertically or horizontally. A high-order crossover network further enhances driver integration and delivers accurate timbre reproduction for movies, music, and multi-channel surround sound systems.

Designed for discreet architectural integration, the W253L includes a slim magnetic grille that can be painted to match interior décor for a clean and seamless appearance. Its compact mounting depth and flexible orientation make it especially suitable for media rooms, custom home theatres, and installations around flat-panel televisions.

With its balanced sound signature, versatile installation options, and premium Revel acoustic performance, the W253L is an excellent solution for immersive in-wall home cinema systems.

Key Features

• Premium in-wall LCR loudspeaker
• Suitable for vertical or horizontal installation
• Dual 5.25-inch aluminum cone woofers
• 1-inch aluminum dome tweeter with integrated waveguide
• Wide dispersion for consistent room coverage

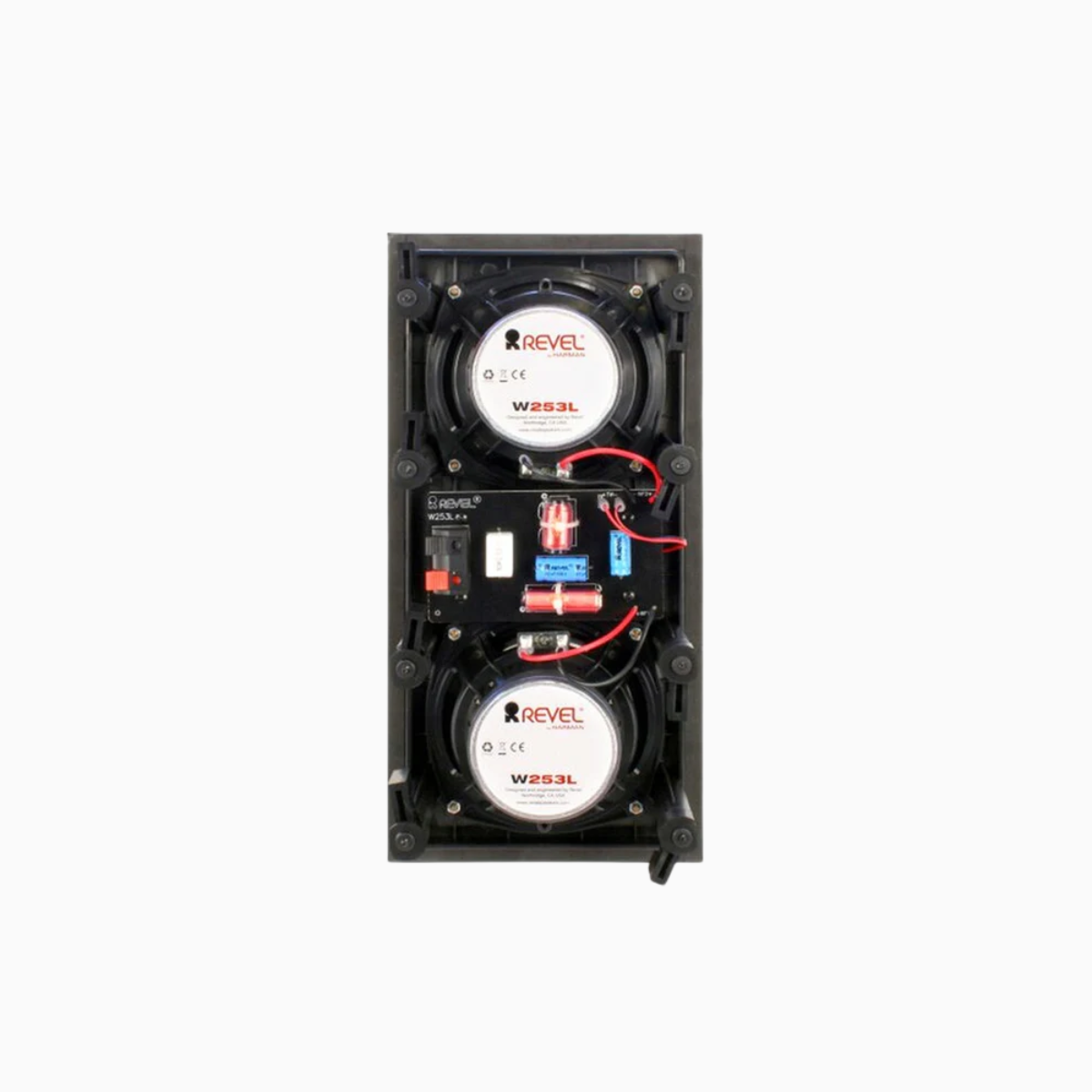

• High-order crossover network for accurate sound reproduction
• Ideal for left, center or right channel applications
• Long-throw woofers for high output and low distortion

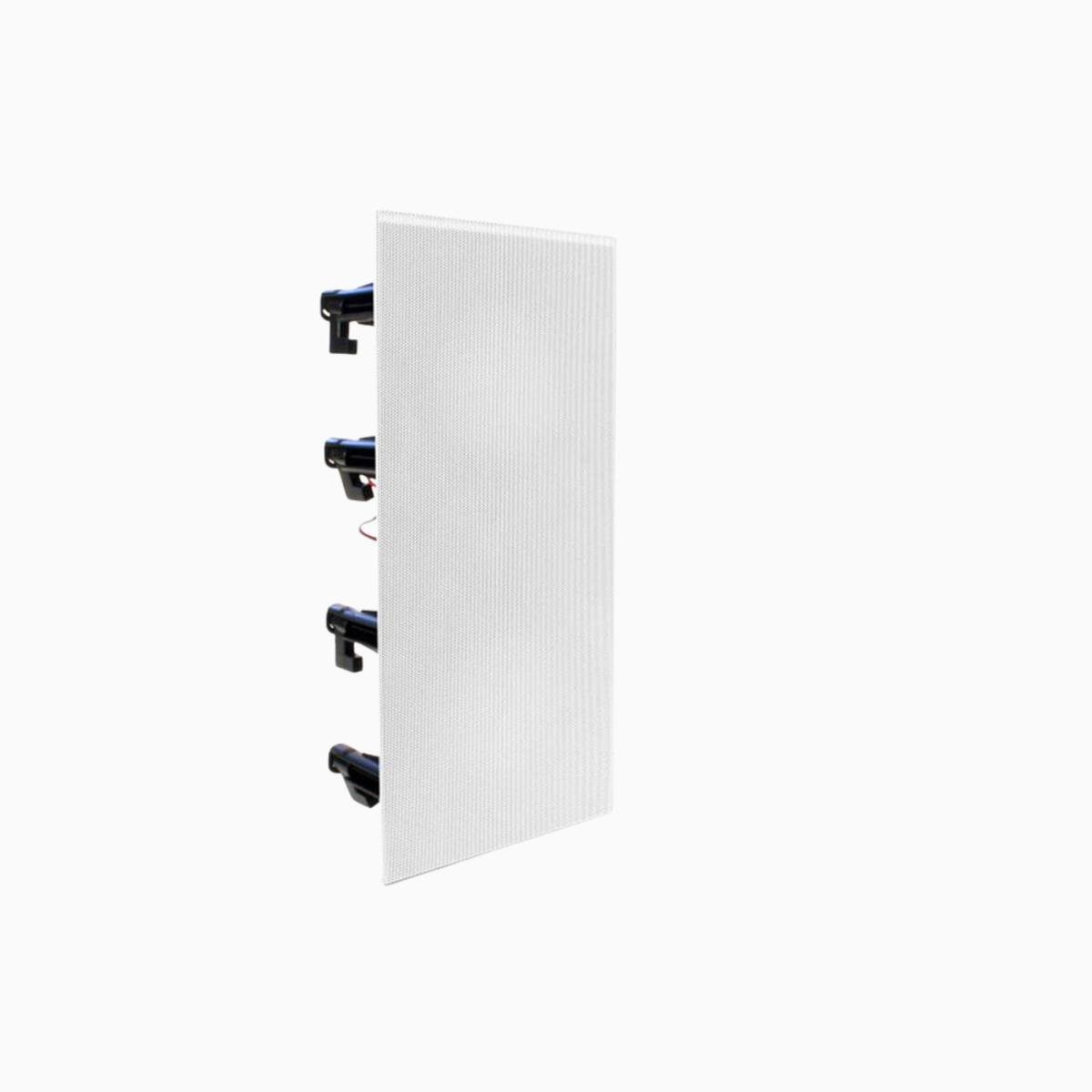

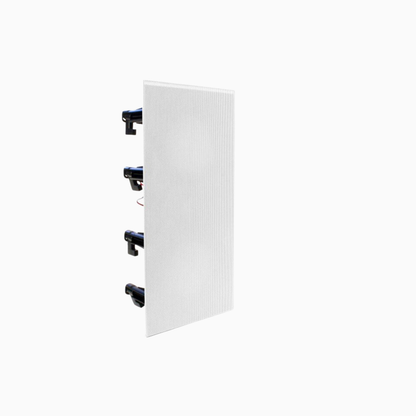

• Paintable magnetic grille for seamless integration
• Compact mounting depth for flexible installation
• Designed for home theatre and distributed audio systems

Technical Specifications

• Model: W253L
• Product Type: In-Wall LCR Loudspeaker
• Speaker Design: 2-way in-wall LCR speaker
• Woofer Configuration: Dual 5.25-inch aluminum cone woofers
• Tweeter: 1-inch aluminum dome tweeter with waveguide
• Recommended Amplifier Power: 10 – 100 Watts RMS
• Sensitivity: 91 dB
• Nominal Impedance: 8 Ohms
• Mounting Depth: 3.5 inches (8.8 cm)
• Cut-out Dimensions (H × W): 14.1 × 6.4 inches
• Grille Dimensions (H × W): 15.1 × 7.4 inches
• Grille Type: Paintable magnetic grille
• Installation Orientation: Vertical or Horizontal
• Weight: Approx. 5.6 lbs (2.5 kg)
• Application: Home theatre, media rooms, distributed audio, LCR installations
