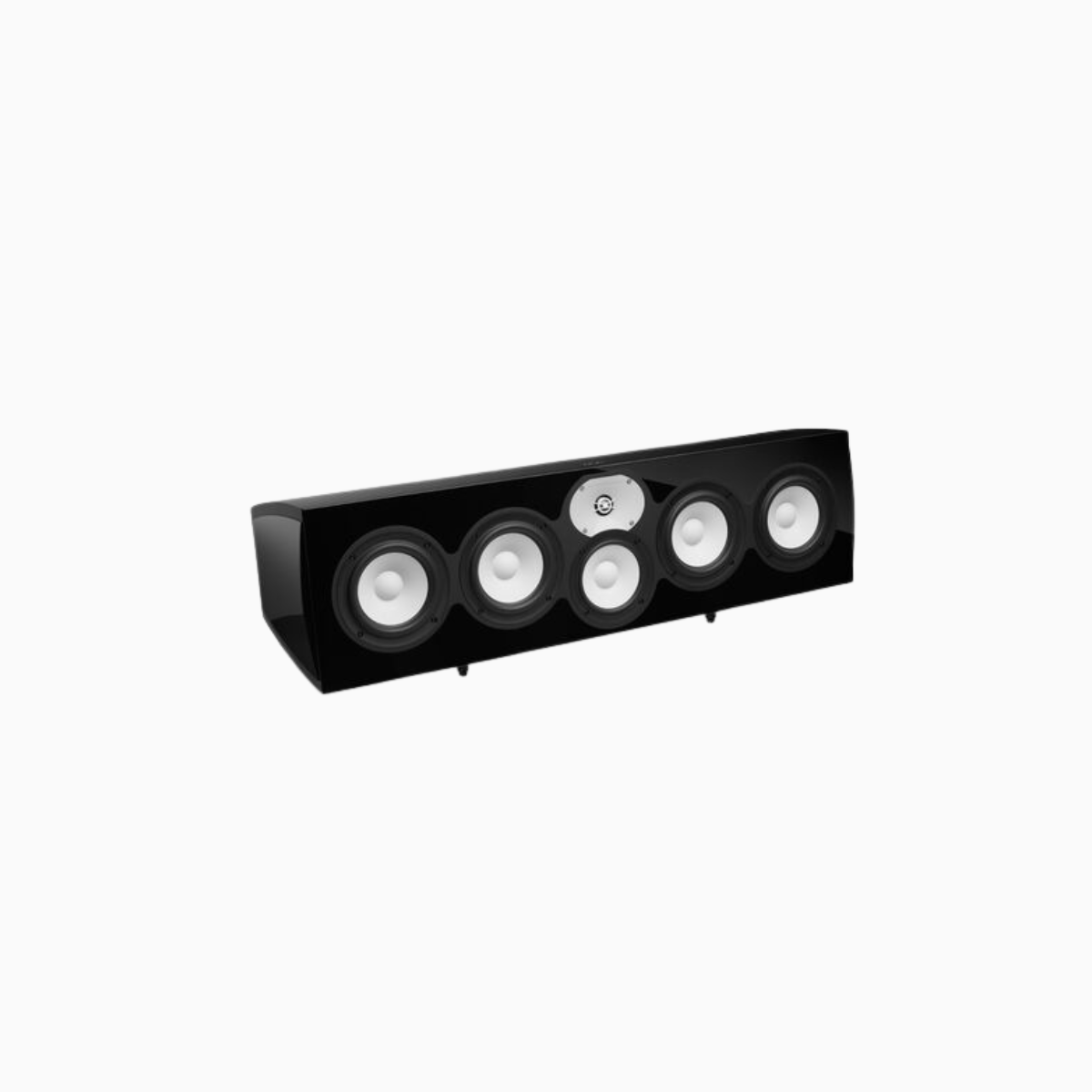

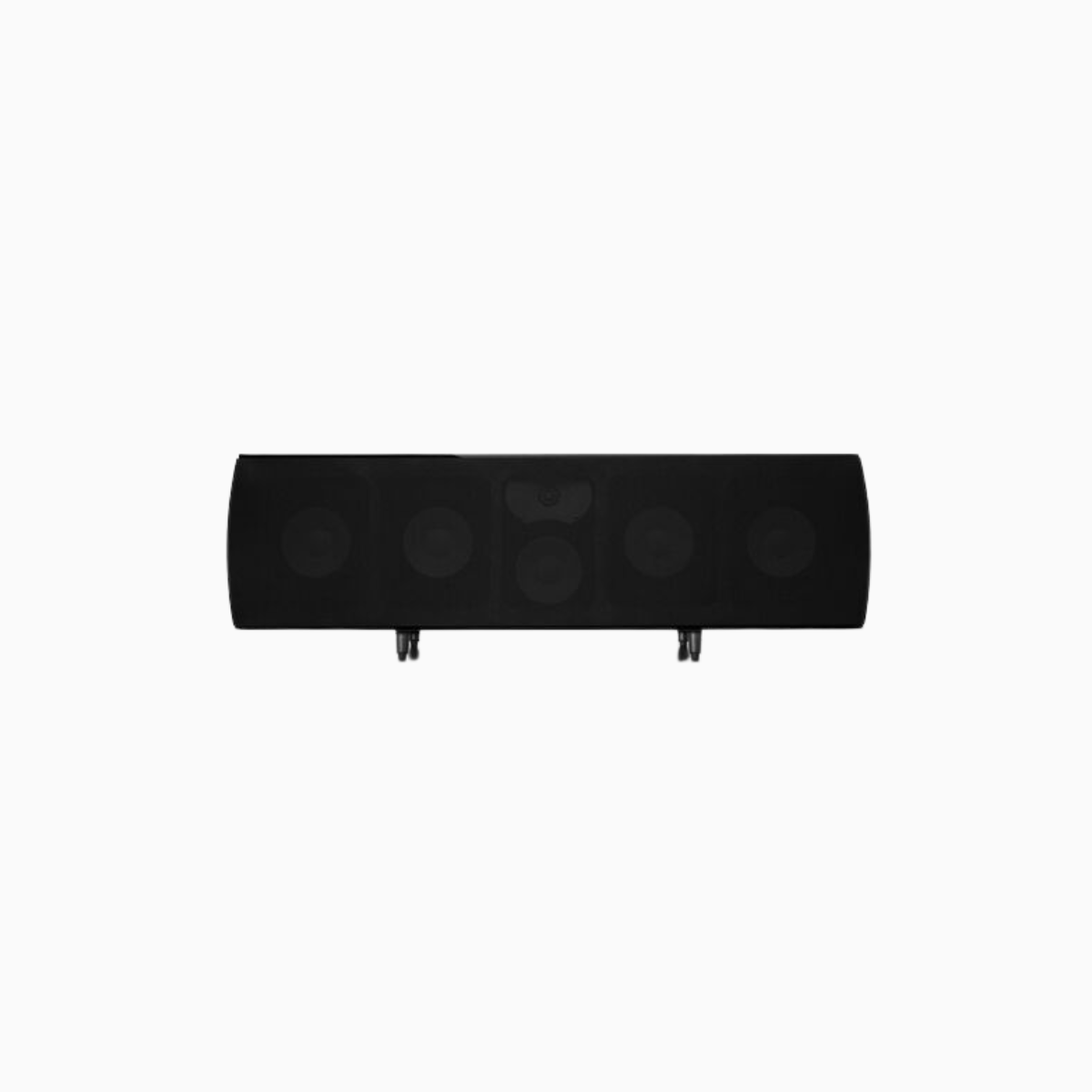

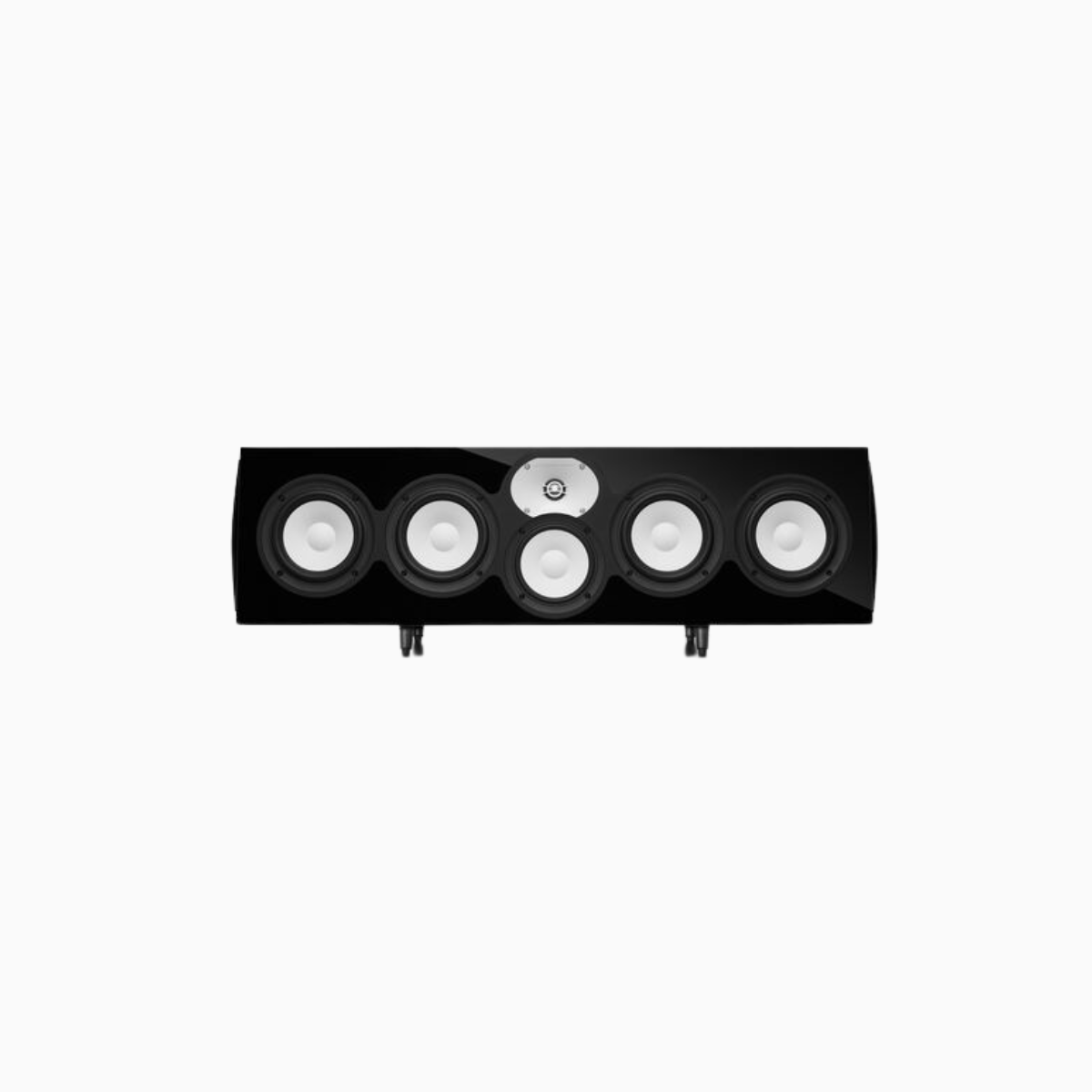

Revel C426Be Center Channel Loudspeaker

Description

The Revel C426Be is a flagship center channel loudspeaker from Revel’s prestigious PerformaBe series, designed to deliver uncompromising dialogue clarity, dynamic impact, and seamless tonal matching with Revel floorstanding and bookshelf speakers. Engineered for premium home theatre systems, the C426Be combines advanced driver technology, precision crossover design, and luxurious cabinet craftsmanship to create an immersive cinematic experience with exceptional accuracy and realism.

At the heart of the speaker is Revel’s renowned 1-inch beryllium dome tweeter paired with the company’s Acoustic Lens waveguide technology. The ultra-light and highly rigid beryllium diaphragm reproduces high frequencies with extraordinary detail, speed, and transparency while maintaining smooth off-axis response for consistent sound across multiple seating positions.

The C426Be also features a dedicated 5.25-inch Deep Ceramic Composite (DCC) aluminum cone midrange driver alongside four 6.5-inch DCC aluminum woofers. This sophisticated 3-way design delivers crystal-clear dialogue, highly detailed midrange reproduction, and deep, controlled bass with minimal distortion, even during demanding movie soundtracks and high-output playback.

Revel’s advanced crossover network utilizes premium film capacitors and air-core inductors to ensure precise driver integration and highly accurate tonal balance. The heavily braced cabinet construction with curved side panels minimizes resonance and cabinet coloration, resulting in exceptional vocal intelligibility, wide sound dispersion, and precise imaging performance.

Designed for high-end home cinema systems, the Revel C426Be offers reference-grade center channel performance that perfectly complements Revel PerformaBe floorstanding speakers, creating a seamless and immersive front soundstage for movies, concerts, and multi-channel music playback.

Key Features

• Flagship 3-way center channel loudspeaker
• 1-inch beryllium dome tweeter with Acoustic Lens waveguide
• Dedicated 5.25-inch DCC aluminum midrange driver
• Quad 6.5-inch Deep Ceramic Composite aluminum woofers
• Exceptional dialogue clarity and vocal accuracy
• Wide dispersion for consistent off-axis performance
• High-order crossover network with premium components
• Bass reflex enclosure with dual rear-firing ports
• Curved cabinet design with extensive internal bracing
• Bi-wire and bi-amp compatible binding posts
• Perfect tonal match for Revel PerformaBe speakers
• Ideal for premium home theatre systems

Technical Specifications

• Model: C426Be
• Product Type: 3-Way Center Channel Loudspeaker
• Tweeter: 1-inch (25mm) Beryllium dome with Acoustic Lens waveguide
• Midrange Driver: 5.25-inch (130mm) Deep Ceramic Composite aluminum cone
• Woofer Configuration: Quad 6.5-inch (165mm) DCC aluminum woofers
• Frequency Response: 45Hz – 40kHz (-6dB)
• Low Frequency Extension: 32Hz (-10dB)
• Sensitivity: 91 dB (2.83V/1m)
• Nominal Impedance: 8 Ohms
• Recommended Amplifier Power: 50 – 300 Watts RMS
• Crossover Frequencies: 260Hz / 2.1kHz

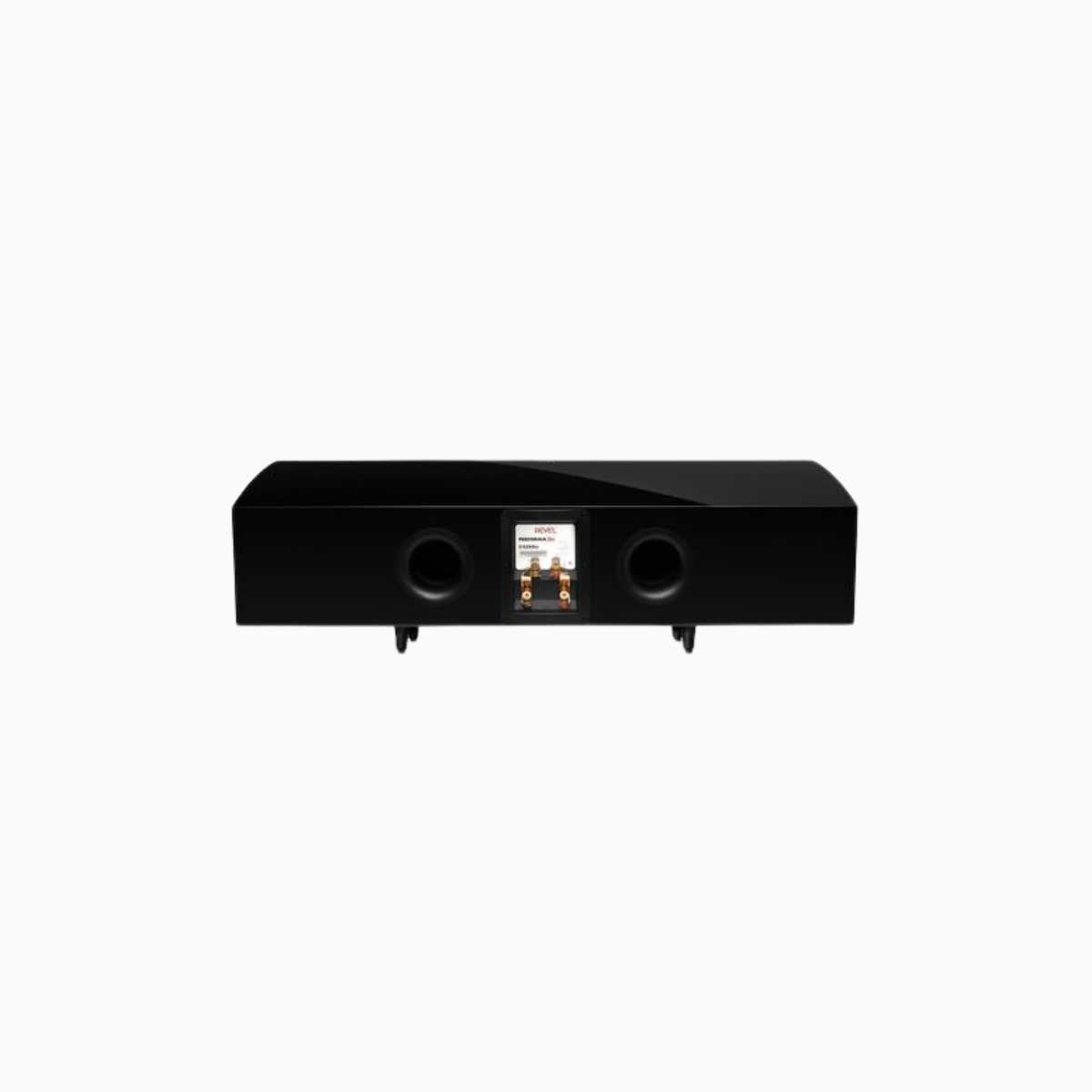

• Enclosure Type: Bass Reflex with dual rear-firing ports
• Binding Posts: Dual gold-plated binding posts for bi-wire / bi-amp operation
• Available Finishes: Black Gloss, White Gloss and Walnut
• Dimensions (H × W × D): Approx. 240 × 914 × 346 mm
• Weight: Approx. 29 kg
• Application: Premium home theatre and multi-channel audio systems
