Bose Professional F1 Model 812 Flexible Array Loudspeaker

Description

The Bose Professional F1 Model 812 Flexible Array Loudspeaker is a powerful, portable PA solution designed for live performances, DJs, corporate presentations, houses of worship, and professional event applications. Featuring Bose’s innovative Flexible Array technology, the F1 Model 812 allows users to easily adjust the vertical coverage pattern to match different venues and audience layouts. With four selectable array positions — Straight, C, J, and Reverse J — the loudspeaker automatically optimizes its EQ for consistent tonal balance and clear sound coverage in every setup.

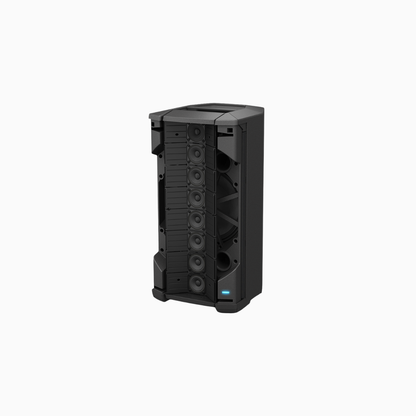

At the heart of the system is a high-output 12-inch woofer combined with an array of eight specially designed mid/high-frequency drivers, powered by a built-in 1000-watt amplifier. Unlike traditional horn-loaded PA speakers, the F1 Model 812 delivers smoother midrange response, natural vocal clarity, and wide sound dispersion even at high output levels. With a maximum SPL of 132 dB and low-frequency extension down to 43 Hz, it offers impressive standalone performance for medium to large venues.

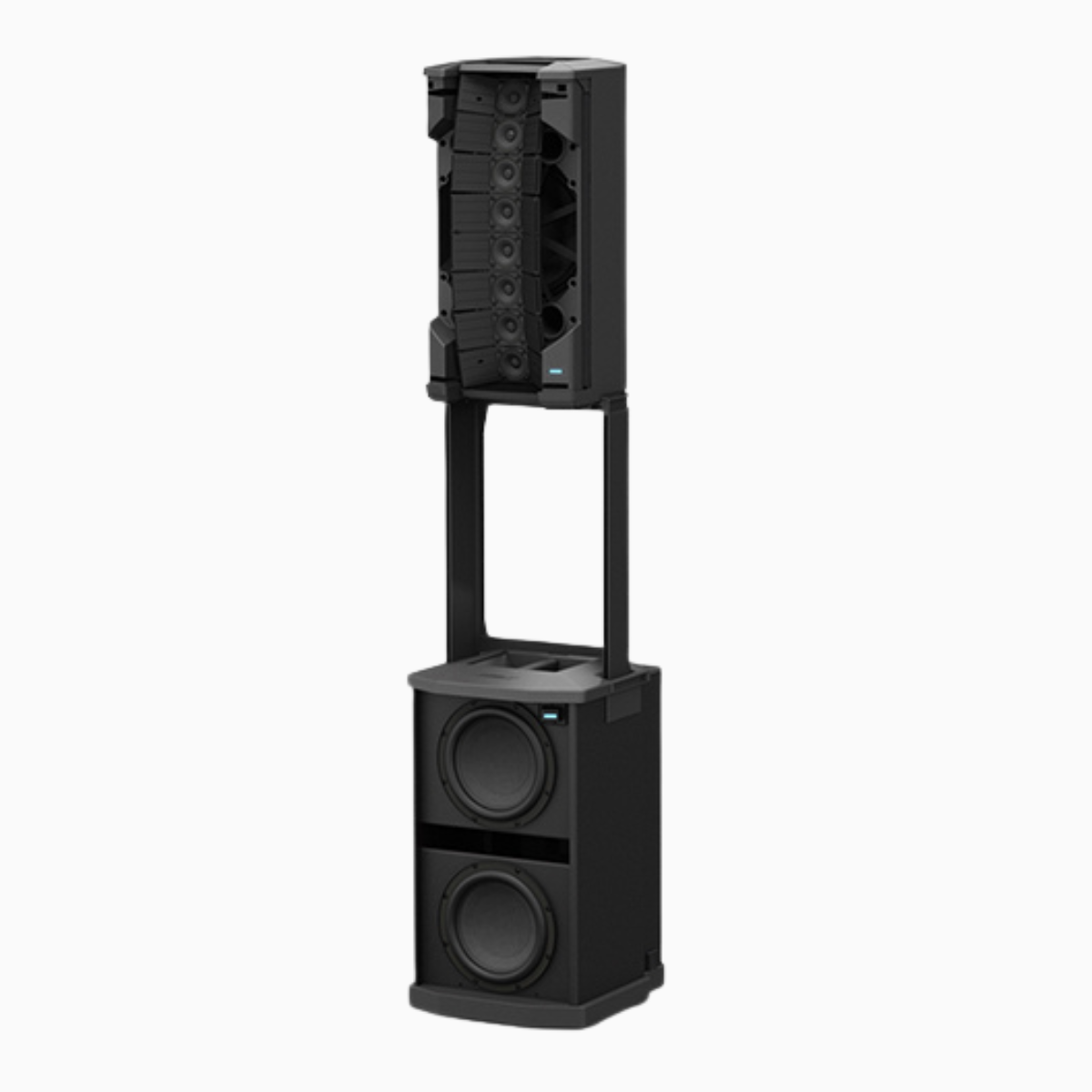

Designed for portability and fast deployment, the Bose F1 Model 812 features integrated handles, multiple input options, and compatibility with standard speaker stands. For enhanced low-frequency performance, it can also be paired with the optional Bose F1 Subwoofer to create a complete high-output portable PA system.

Key Features

• Bose Flexible Array technology with adjustable coverage patterns
• Four vertical coverage modes: Straight, C, J, and Reverse J
• Built-in automatic EQ adjustment for optimized sound balance
• 1000-watt integrated Class-D amplifier
• Eight high-output mid/high-frequency drivers
• High-performance 12-inch woofer for powerful bass response
• Maximum SPL up to 132 dB
• Low-frequency response down to 43 Hz (-10 dB)
• Clear vocal and midrange performance even at high volumes

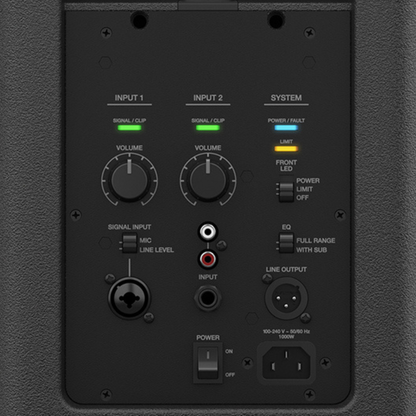

• Two-channel integrated mixer with independent level controls
• XLR, 1/4-inch TRS, and RCA input connectivity
• Portable enclosure with integrated carry handles
• Compatible with standard 35 mm speaker stands
• Optional Bose F1 Subwoofer integration available
• Ideal for live music, DJs, presentations, and event applications

Technical Specifications

• Product Type: Powered Flexible Array Loudspeaker
• Amplifier Power: 1000 Watts
• LF Driver: 12-inch High-Output Woofer
• HF Drivers: 8 High-Output Drivers
• Maximum SPL: 132 dB
• Frequency Response: Down to 43 Hz (-10 dB)
• Coverage Patterns: Straight, C, J, Reverse J
• Inputs: XLR, 1/4-inch TRS, RCA
• Integrated Mixer: 2-Channel
• Amplifier Type: Class-D
• Speaker Stand Mount: 35 mm Pole Mount
• Dimensions (H × W × D): 664.66 × 334.3 × 372.5 mm
• Weight: Approx. 20.4 kg
• Applications: Live Sound, DJs, Events, Corporate AV, Worship Spaces
• Optional Accessories: Bose F1 Subwoofer, Covers, Bags, Mounting Accessories
